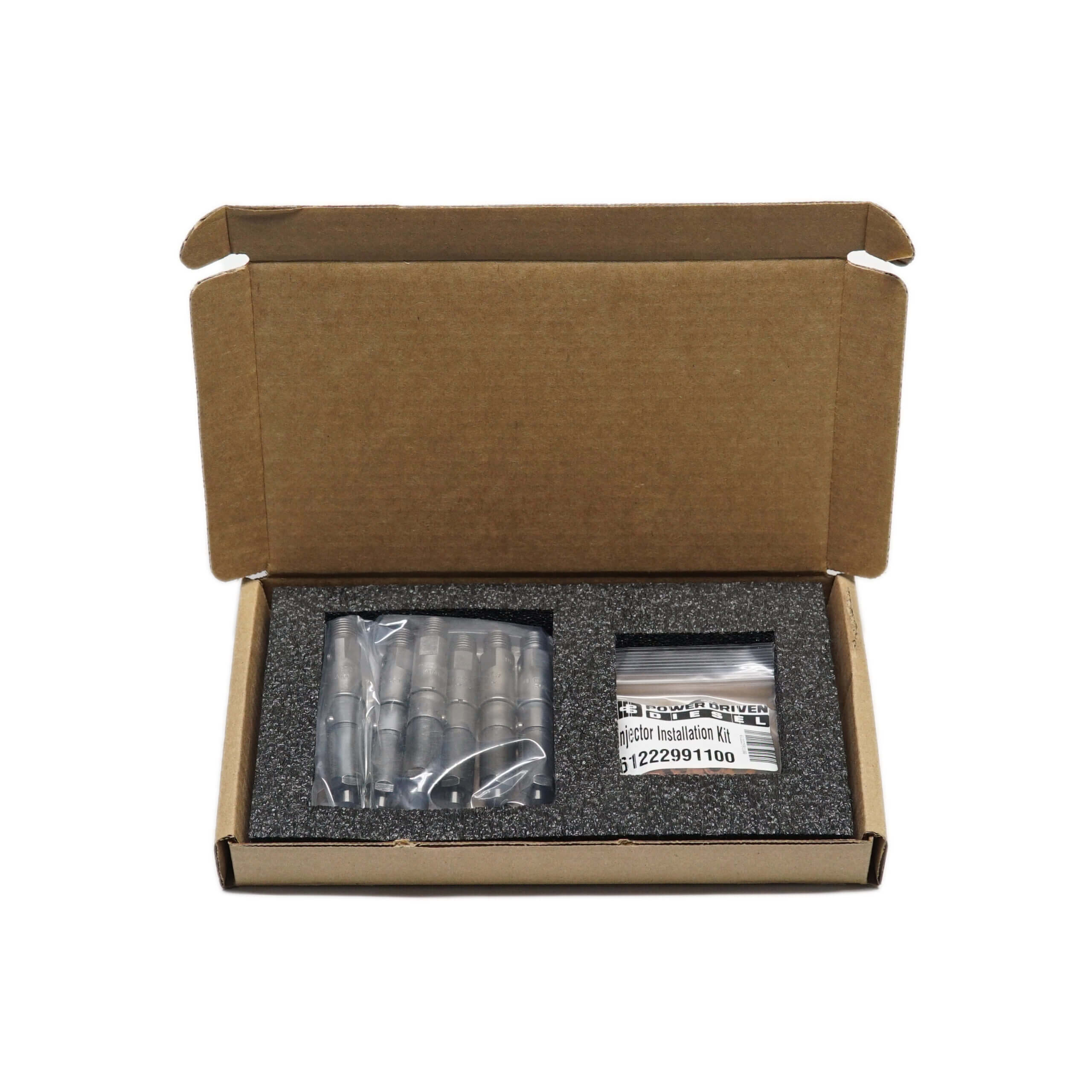

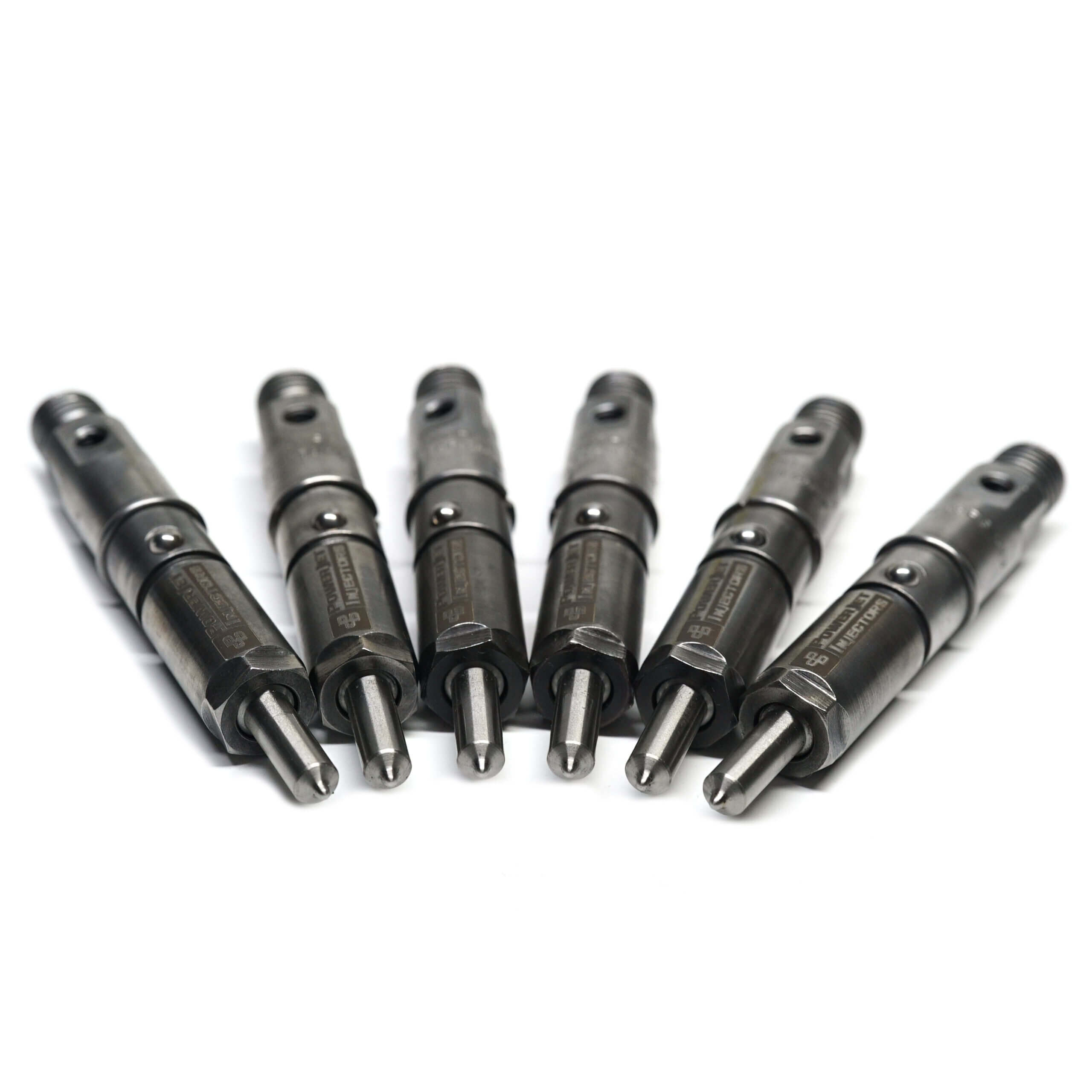

Power Driven Diesel PowerJet 6BT VE pump injectors are built, tested, and calibrated to exacting standards at our shop in Utah, ensuring high quality and consistent performance before they go out the door. From daily drivers, to work trucks, to dedicated competition vehicles, our PowerJet 6BT VE pump injectors have proven themselves. Each set of injectors comes with new sealing washers, or a complete installation kit is optional as well.
Would you like to know more? Our tech support staff frequently receives these common questions about injectors:
Which is better, SAC or VCO nozzles?
For the best explanation and demonstration of nozzle types, check out the video above!
What is the spray angle, and which one is right for me?
The spray angle, or spray pattern, is another variable in the injector equation. This refers to the built-in cone angle of the injector nozzle itself. Normally, the injector spray angle and piston bowls should be matched for optimal performance. Generally, 8v 4BT with stock pistons will run best with a 155-degree spray angle. When mixing and matching spray angles and piston bowls, one must be careful. Putting 155-degree injectors in an engine with 145-degree pistons will result in high EGTs and a very hazy, smokey exhaust due to the fuel spraying outside the bowl. The notorious marine 370 hp injectors used in days past had a 155-degree spray pattern and gave performance injectors a bad name for a long time. On the other hand, we have had good results running 145-degree injectors in 155-degree piston bowls. This is especially apparent on builds with high injection timing.
Today, we offer a wide assortment of performance injectors and nozzles with spray angles tailored to your application.
Compatible with: (VE pumped)
- 1989 Dodge 5.9L 12v Cummins
- 1990 Dodge 5.9L 12v Cummins
- 1991 Dodge 5.9L 12v Cummins
- 1992 Dodge 5.9L 12v Cummins
- 1993 Dodge 5.9L 12v Cummins
*May not work for all builds due to other engine/vehicle modifications
Frequently bought with:
Dodge \ Ram Diesel
Power Driven 10 AN Block Oil Drain Fitting 89-07 Dodge Cummins
Check out the PDD YouTube for anything and everything diesel performance!
| Power Level | Stage 1 (Up to 500 hp), Stage 2 (Up to 650 hp), Stage 3 (Up to 1,200 hp), Stage 4 (Up to 1,500 hp) |
|---|
