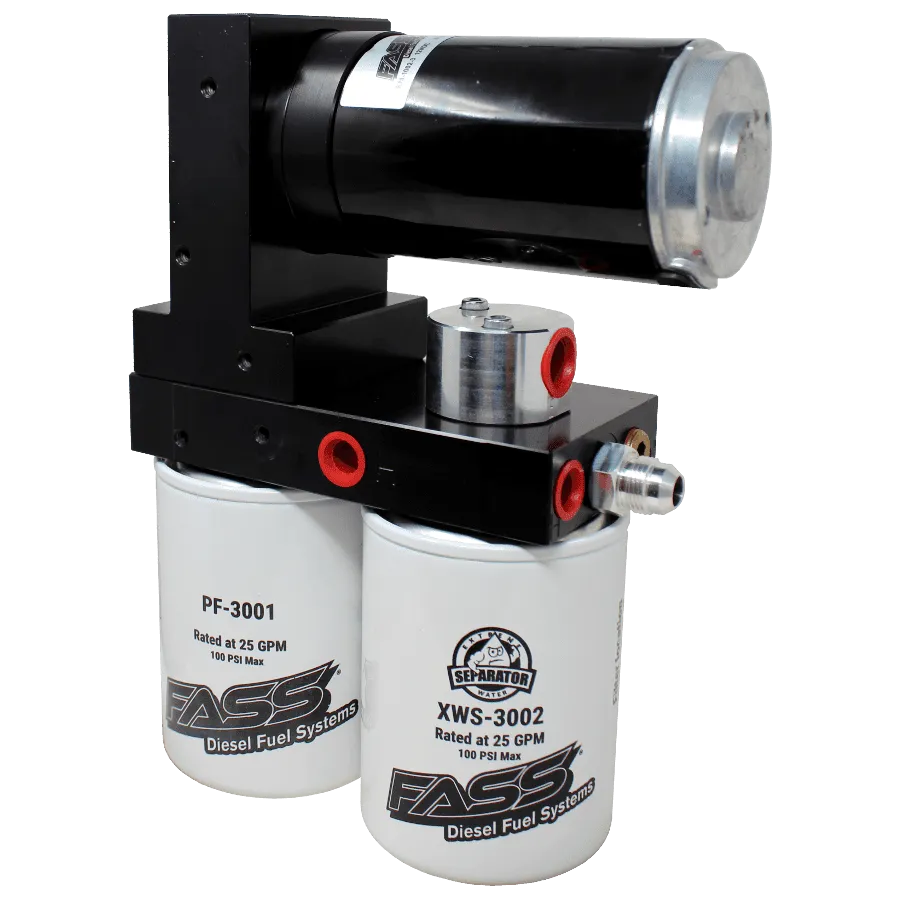

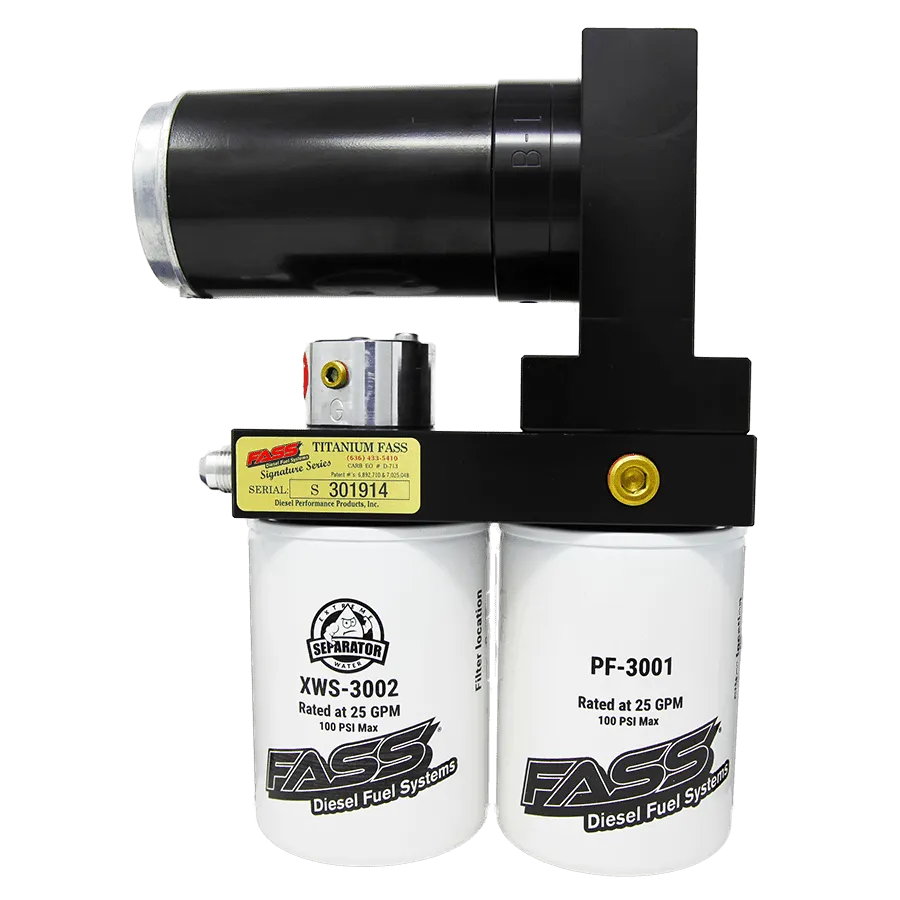

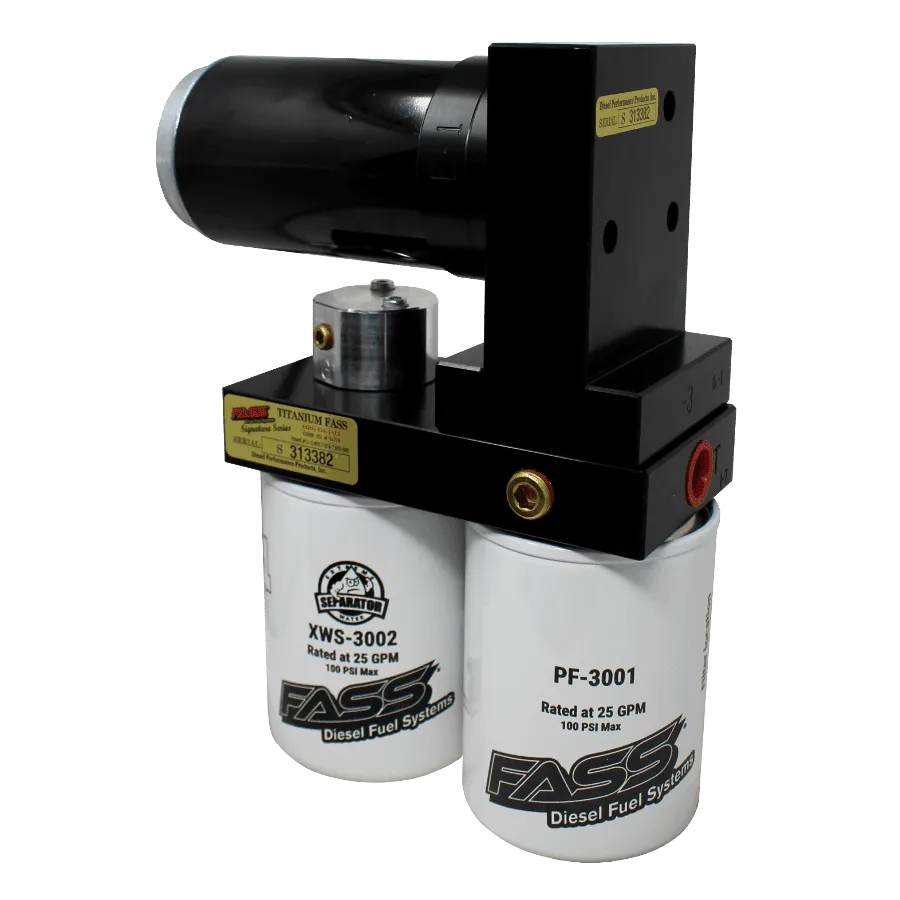

FASS Titanium Series Fuel System 250F 240GPH (45 PSI) for Cummins 5.9L 1994-1998, 900-1200hp, (TSD10250F240G)
Regular Price $739.05
-
Features:
- Compatible with: 5.9L Cummins 1994-1998 (Horsepower range: 900-1200hp)
- Improves: cold starts, fuel mileage, fuel volume, and increases the life of your injectors.
- This is a complete replacement system and includes the bulkhead fitting, the suction tube, and the brand-new brackets for installation
The Titanium Signature Series diesel fuel system 250F 240GPH was engineered by FASS Diesel Fuel Systems to be the top-performing, longest-lasting, and most reliable aftermarket filtration System in the diesel industry. Rated at a verified 240 gallons per hour, high pressures of 45PSI, and offered with a limited lifetime warranty Fass Titanium Series System can support your Dodge Cummins 5.9L 12V diesel engine with enough fuel for 900-1200 HP.
A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your 12 valve injection Systems, effectively extending the life of both your P-System and Bosch Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Diesel Fuel Systems’ patented air/vapor removal process. FASS Fuel Systems are important for both daily drivers and high-performance applications when looking to improve engine operation.
The added filtration with the removal of air/vapor will greatly enhance the life of your fuel injection System along with improving the horsepower/idle quality/throttle response/fuel economy/lower EGT’s & extreme cold weather operations if equipped with FASS fuel heating options.
This kit includes a Bulkhead Fitting and Suction Tube. Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8” Suction Tube and suction fuel line along with a ½” Fuel Return Port. This new and improved version from Fass’s previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process.
The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depths of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.
The Titanium Signature Series diesel fuel Systems are the superior fuel System and filtration System, in the diesel industry. This is because FASS Diesel Fuel Systems focuses on perfecting its Systems and how they are engineered, taking the extra steps Fass competitors ignore while they rush to get product out the door. By doing this Fass has less than a 1.5% failure rating with their motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems.
The FASS Titanium Signature Series Diesel Fuel System 250F 240GPH (45 PSI) is Compatible With:
- 1994 Dodge 5.9L 12V Cummins 900-1200hp
- 1995 Dodge 5.9L 12V Cummins 900-1200hp
- 1996 Dodge 5.9L 12V Cummins 900-1200hp
- 1997 Dodge 5.9L 12V Cummins 900-1200hp
- 1998 Dodge 5.9L 12V Cummins 900-1200hp
*May not work for all builds due to other engine/vehicle modifications
Frequently bought with:
Dodge \ Ram Diesel
Power Driven Diesel 10 AN Block Oil Drain Fitting for 89-07 Dodge Cummins (11001010001)
Check out the PDD Youtube for anything and everything diesel performance!
At Power Driven Diesel, we’re on a mission to redefine diesel performance. Founded by Todd Welch and Will Terry, our team is driven by an unwavering passion for pushing the limits. From Todd’s towering presence in diesel drag racing to Will’s budget-friendly innovations, we’ve come together to form a dynamic force in the industry to give you the best products and best customer service in the industry.
Our commitment is simple: leverage knowledge, share insights, and provide cutting-edge solutions to enable everyone to build high horsepower builds. Power Driven Diesel is more than a brand; it’s a community of enthusiasts, innovators, and lifelong learners. Follow along on the journey to unleash the true power of diesel performance.
| Weight | 32 lbs |
|---|---|
| Dimensions | 18 × 14 × 12 in |
