S362SX-E Drop In Turbo
S362SX-E Drop In Turbo

S362SX-E Drop in Kit For 1994 – 2002 Dodge 5.9L Cummins (500hp-550hp)

From: $1,395.00

What’s Included in the Borg Warner SX-E Turbo Kit:

  • S362SX-E style Turbocharger with 68mm Turbine
  • Machining for Stock 2nd-gen Compressor Elbow
  • 12v and 24v Oil Adapter Fitting
  • Twin Scroll .70 a/r Wastegated Turbine Housing-HX40
  • T3 Turbo/Manifold Gasket
  • Oil Drain Gasket
  • 3/8″-16×1.25″ Drain Bolts
  • 17″ Power Driven Diesel Sticker



Add to Wishlist
SKU: 13001018056 Categories: , , , , Tags: , , , , , ,

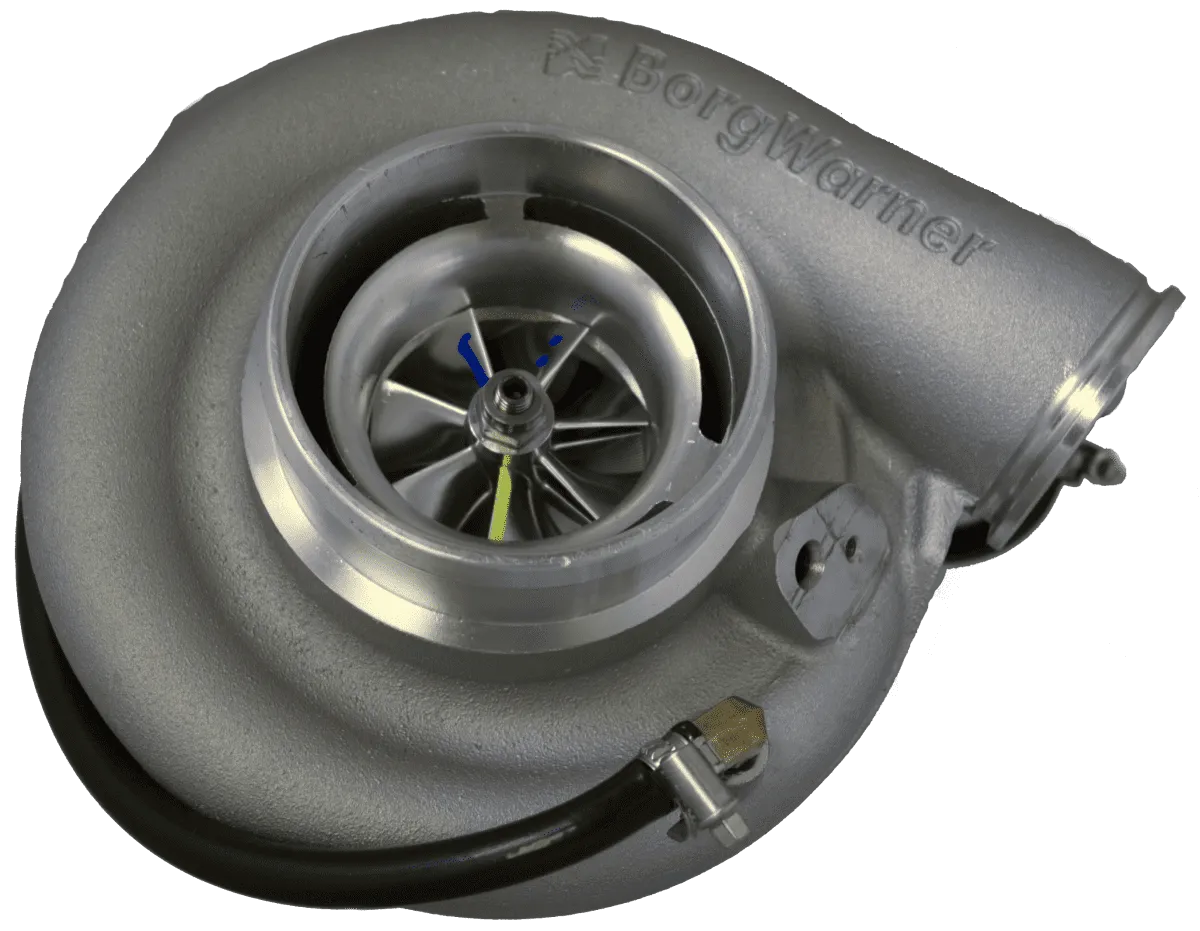

The Borg Warner SXE turbo drop-in line introduces the latest in turbo technology for your 2nd Gen Cummins diesel. With a new/redesigned compressor housing and a Forge Milled Compressor wheel (FMW), the SX-E turbos not only outflow their SX3/4 counterparts by a substantial amount, but they spool faster and come standard with a 360° thrust-bearing, allowing them to last longer and run higher power levels. Get the most out of your truck and ahead of the competition with a Borg Warner SX-E turbo.

Borg Warner SX-E drop-in kit features:

  • Twin hydrodynamic journal bearings
  • 360° thrust bearing (standard)
  • FMW compressor wheel with extended tip technology
  • Integrated speed sensor port
  • Adjustable compressor and turbine housing orientation
  • Compressor cover re-circulation grooves
  • 62mm Compressor wheel Inducer Diameter
  • 68mm Turbine Wheel Outer Diameter
  • Twin Scroll .70 A/R internally Wastegated Turbine Housing

What’s Included in the Borg Warner SX-E Turbo Kit:

  • S362SX-E style Turbocharger with 68mm Turbine
  • Machining for Stock 2nd-gen Compressor Elbow
  • 12v and 24v Oil Adapter Fitting
  • Twin Scroll .70 a/r Wastegated Turbine Housing-HX40
  • T3 Turbo/Manifold Gasket
  • Oil Drain Gasket
  • 3/8″-16×1.25″ Drain Bolts
  • 17″ Power Driven Diesel Sticker

The purchase of this kit includes one S362SX-E turbo’s:

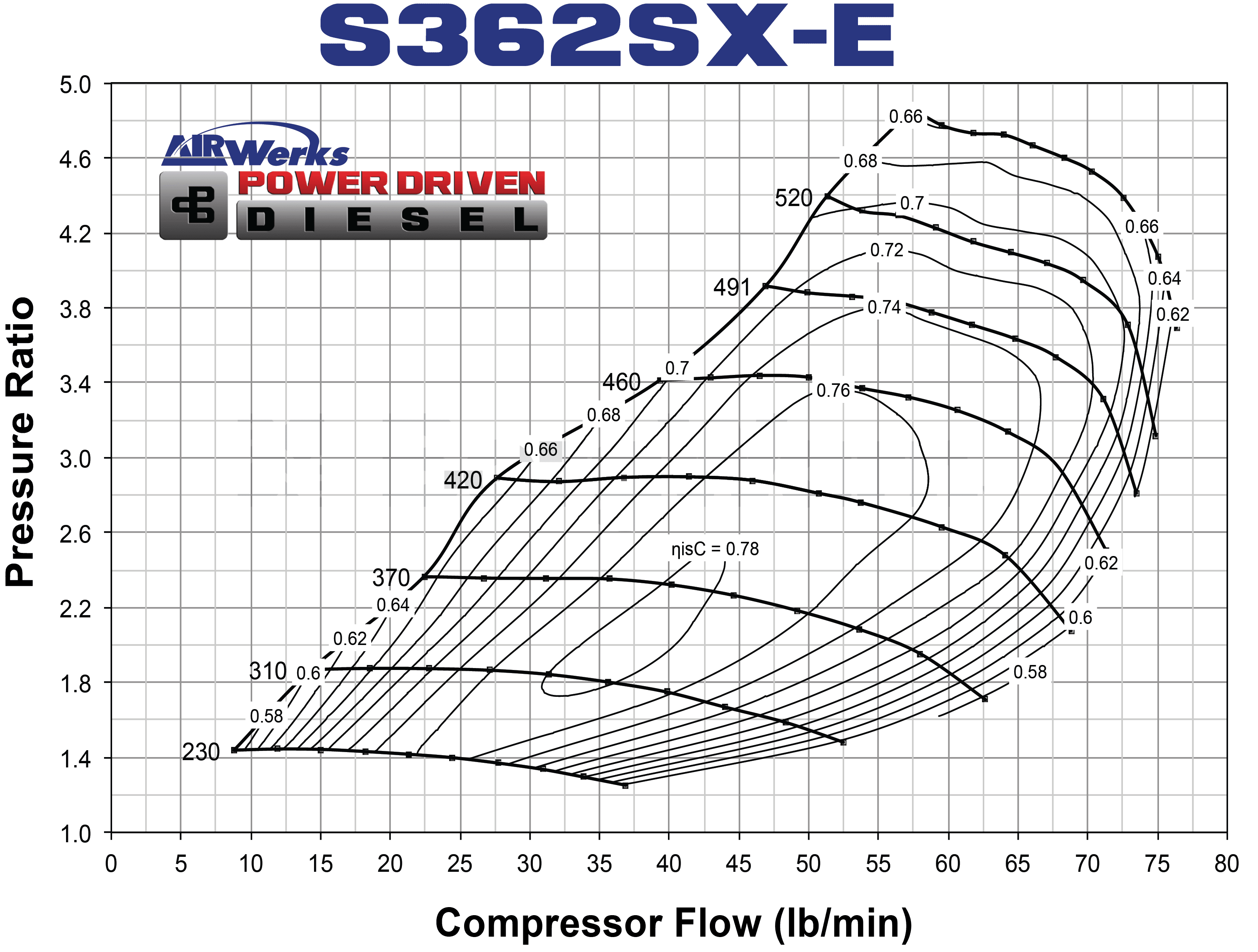

  1. S362sx-e (62mm compressor wheel, 620 HP capable)

We recommend the installation of this turbo into your 2nd gen Cummins be done by a certified mechanic. The S300SX-E line of turbos were not designed by Borg Warner as “drop-ins” for the Dodge 2nd-gen Cummins trucks. However, because of the SX-E’s growing popularity, we have designed this kit to bridge the gap and make installing an S300SX-E turbo into your truck as painless as possible. This comprehensive kit comes with nearly everything needed to install an s300sx-e style turbo into a 94-02 5.9L Dodge Cummins truck.

Check out our Turbo Accessories to get the most out of your turbo!

Weight 33.5 lbs
Dimensions 1 × 1 × 1 in
