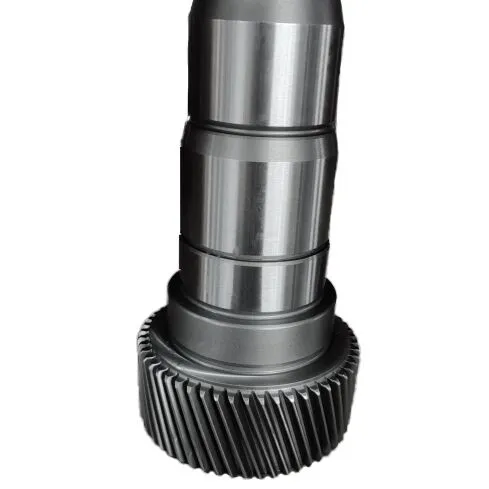

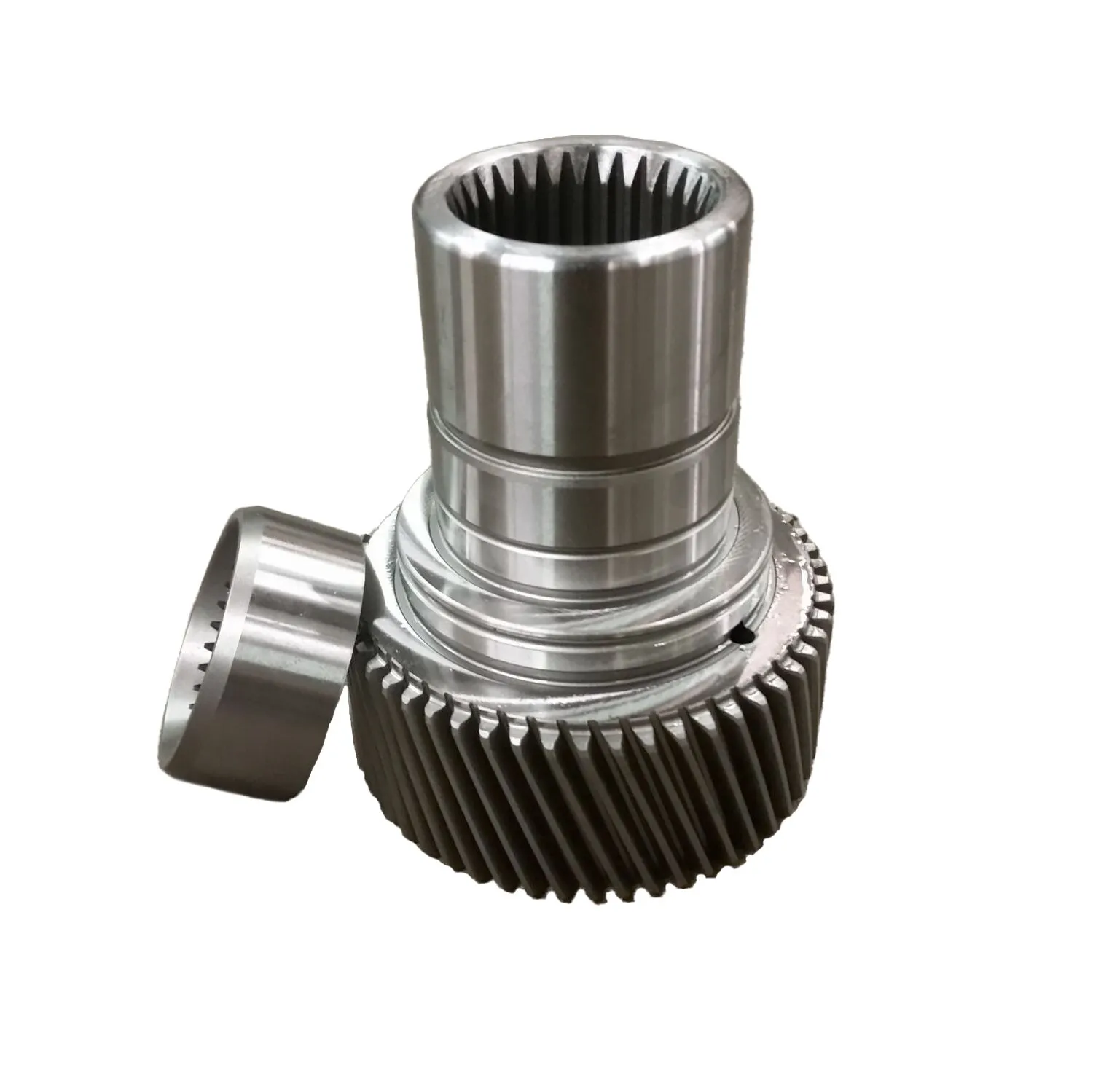

Power Driven NP241 T-Case 29 Spline Input Shaft
Regular Price $210.00 – $335.00
-
- Power Driven Diesel NP241 T-Case 29 Spline Input Shaft (20000001016)
Features:
- NP241 T-case 29 spline input shaft – Narrow 16 mm bearing
- NP241 T-case 29 spline input shaft – Narrow 16 mm bearing – Shortened to 0.875″
- NP241 T-case 29 spline input shaft – Wide 24 mm bearing
- NP241 T-case 29 spline input shaft – Wide 24 mm bearing – Shortened to 0.875″
This product cannot ship to California
The NP241 T-Case 29 Spline Input Shaft for transfer cases for 1994 through 2002 Dodge RAM Trucks, is required when using a manual transmission (NV4500/NV5600) or when upgrading to a fat 29 spline billet output shaft in Dodge 47RE and 48RE transmissions. When using this shaft with a billet 29 spline automatic transmission, it must be shortened to 0.875″ to accommodate the length requirements of an automatic transmission.
This is recommended for 1,000 hp race trucks and sled pullers that regularly break the standard-sized 23 spline billet transmission output shafts and need the strength of a 29 spline transfer case input shaft.
Note: There are 2 versions of this transfer case input shaft, one for 16 mm (narrow bearing), and a separate model for 24 mm (wide bearing).
Wide bearing NP241 assembly numbers: 52098503, 52098504, 52098512, 52098534, 52098675, 52098676, 52098677, 52098678, 52099035, 52099036, 52099041, 52105091, 52105023AB, 52105024AB, 52105024AC, 52105024AD, 52105025AB, 52105025AC, 52105025AD, 52105026AB, 52105027AB, 52105027AC, 52105027AD, 52105028AB, 52105028AC, 52105028AD
Narrow bearing NP241 assembly numbers: 52105023, 52105024, 52105025, 52105026, 52105027, 52105028, 52105092, 52105314, 52105335, 52105335, 52105336, 52105368, 52105370, 52105513
The Power Driven Diesel NP241 T-Case 29 Spline Input Shaft is compatible with:
- Manual Transmission NV4500
- Manual Transmission NV5600
- Automatic 47RE Transmission
- Automatic 48RE Transmission
- 1994 Dodge 5.9L 12v Cummins
- 1995 Dodge 5.9L 12v Cummins
- 1996 Dodge 5.9L 12v Cummins
- 1997 Dodge 5.9L 12v Cummins
- 1998 Dodge 5.9L 12v Cummins
- 1998.5 Dodge 5.9L 24v Cummins
- 1999 Dodge 5.9L 24v Cummins
- 2000 Dodge 5.9L 24v Cummins
- 2001 Dodge 5.9L 24v Cummins
- 2002 Dodge 5.9L 24v Cummins
*May not work for all builds due to other engine/vehicle modifications
Frequently bought with:
Diesel Transmission Parts Products
Diesel Transmission Parts Products
Engine Parts
Diesel Transmission Parts Products
| Weight | 3 lbs |
|---|---|
| Dimensions | N/A |
| Input Bearing Size | Narrow 16mm (0.630") bearing, Wide 24mm (0.940") bearing |
| Shaft Length | No modification (Standard Length), Shortened (-0.875") |
