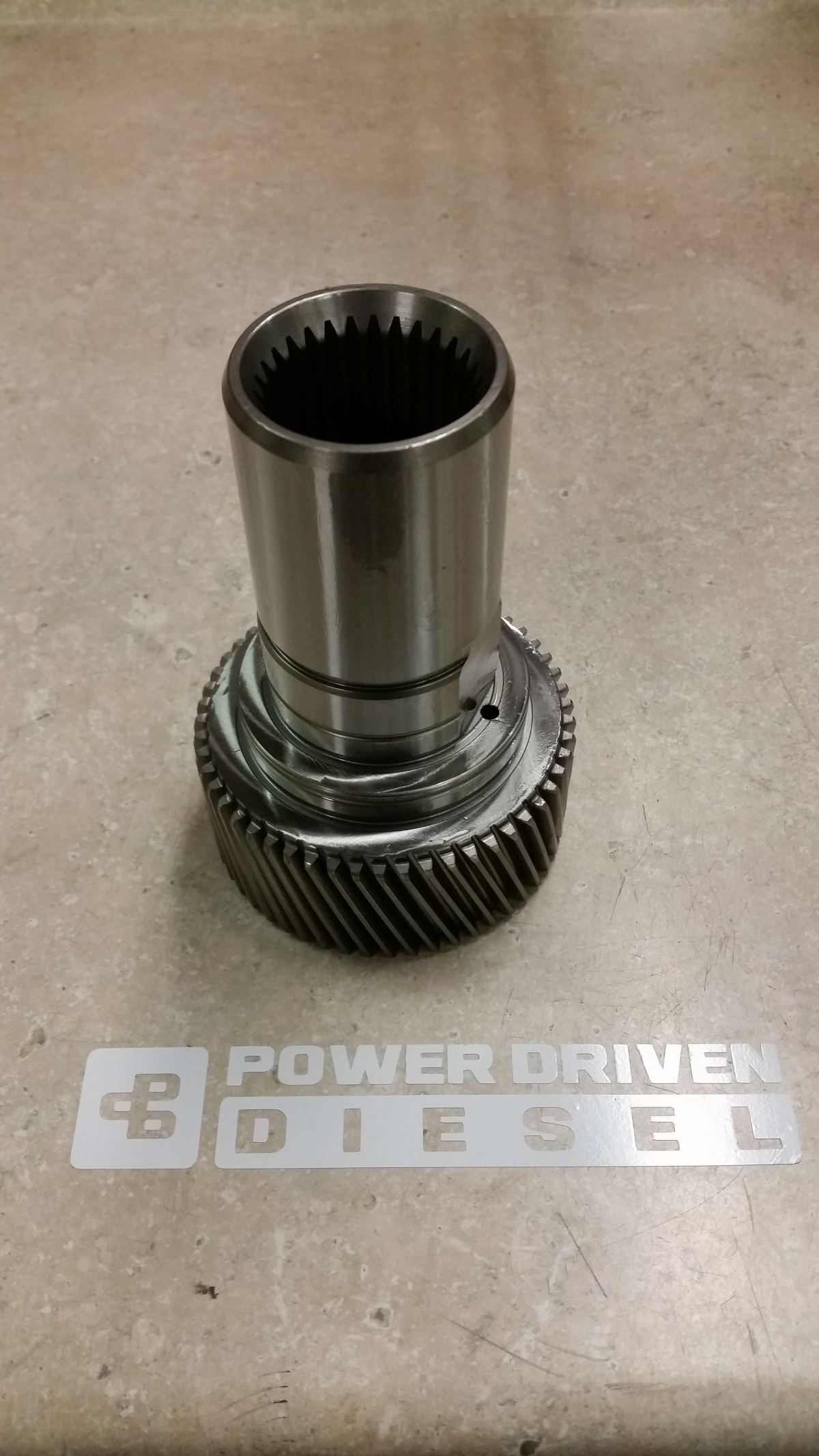

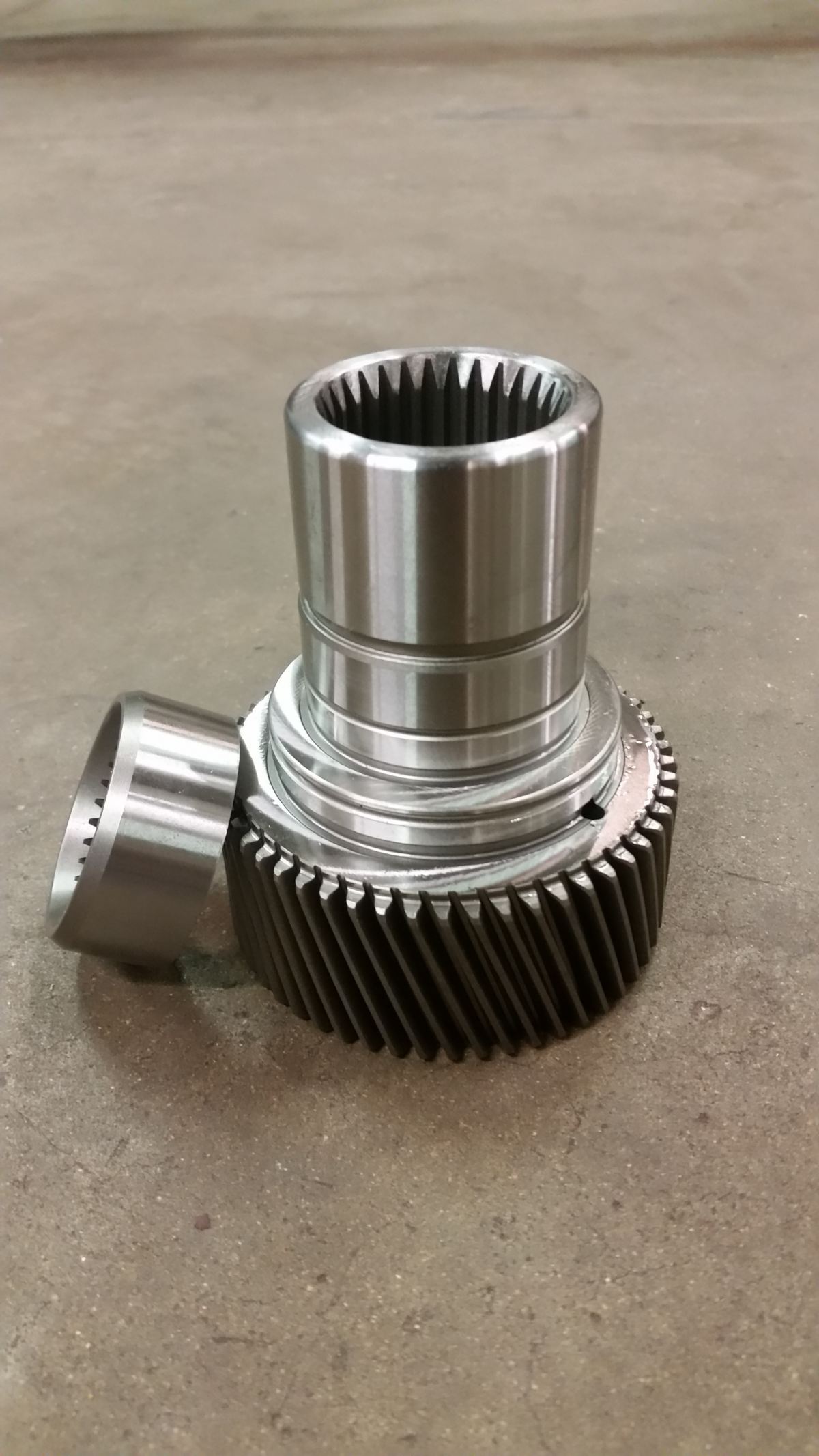

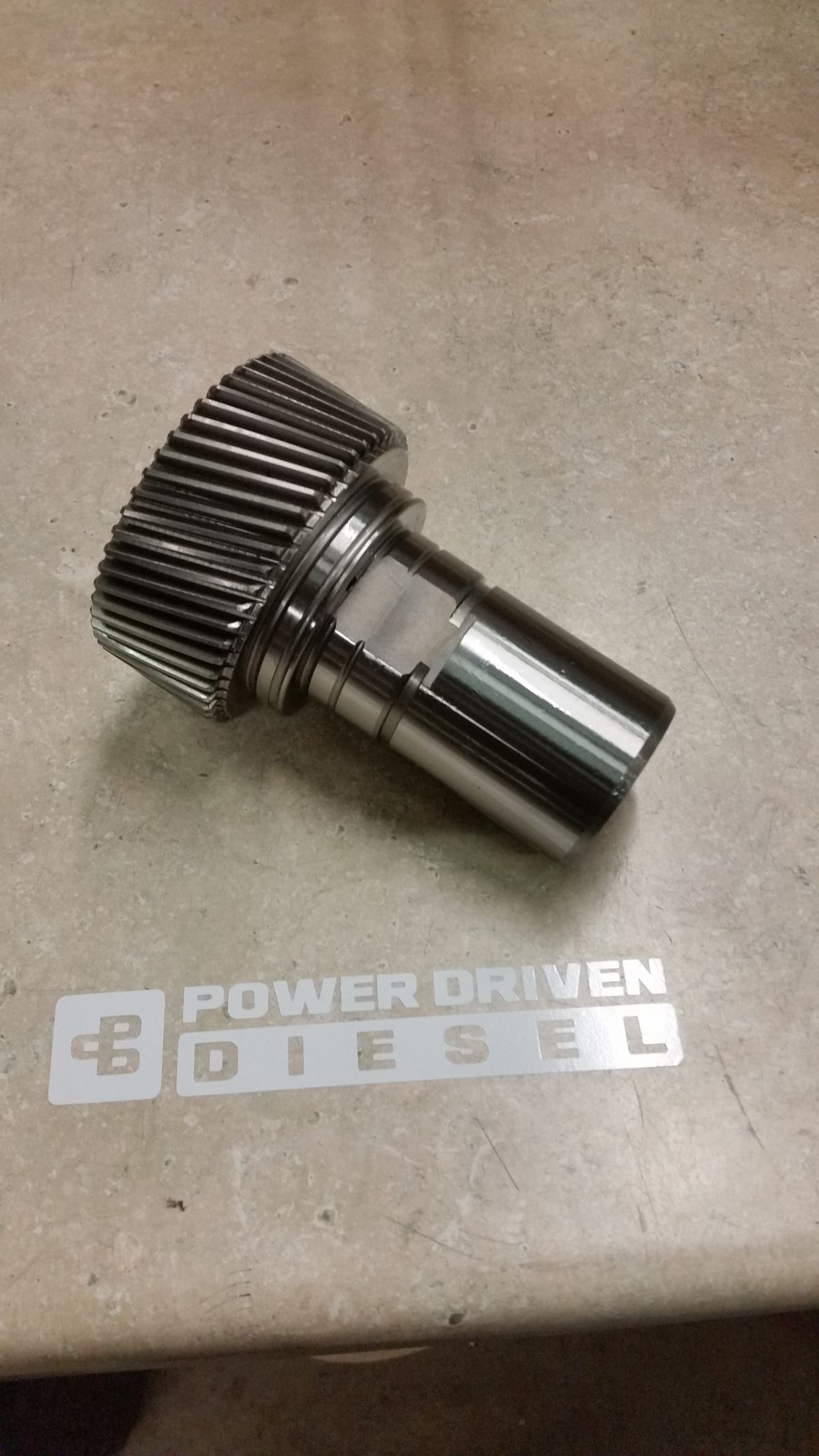

The Power Driven Diesel NP241 T-Case 29 Spline Input Shaft was designed for the NP241 transfer case of 94-02 Dodge RAM trucks. This transfer case input shaft is required when using a manual transmission (NV4500/NV5600) or when upgrading to a fat 29 spline billet output shaft in Dodge 47RE and 48RE transmissions. When using this shaft with a billet 29 spline automatic transmission, it must be shortened to 0.875″ to accommodate the length requirements of an automatic transmission.
Recommended for 1,000 hp race trucks and sled pullers that regularly break the standard-sized 23 spline billet transmission output shafts and need the strength of a 29 spline transfer case input shaft.
Note: There are 2 versions of this transfer case input shaft – one for 16 mm (narrow bearing) and a separate model for 24 mm (wide bearing).
Wide bearing NP241 assembly numbers: 52098503, 52098504, 52098512, 52098534, 52098675, 52098676, 52098677, 52098678, 52099035, 52099036, 52099041, 52105091, 52105023AB, 52105024AB, 52105024AC, 52105024AD, 52105025AB, 52105025AC, 52105025AD, 52105026AB, 52105027AB, 52105027AC, 52105027AD, 52105028AB, 52105028AC, 52105028AD
Narrow bearing NP241 assembly numbers: 52105023, 52105024, 52105025, 52105026, 52105027, 52105028, 52105092, 52105314, 52105335, 52105335, 52105336, 52105368, 52105370, 52105513
