Power Driven Machined/Stepped Overdrive Brake Reaction Plate

Regular Price $33.08

-

  • Power Driven Diesel Machined/Stepped Overdrive Brake Reaction Plate (23006182046)

In stock (can be backordered)

Add to Wishlist
SKU: 23006182046 Categories: , , Tags: ,

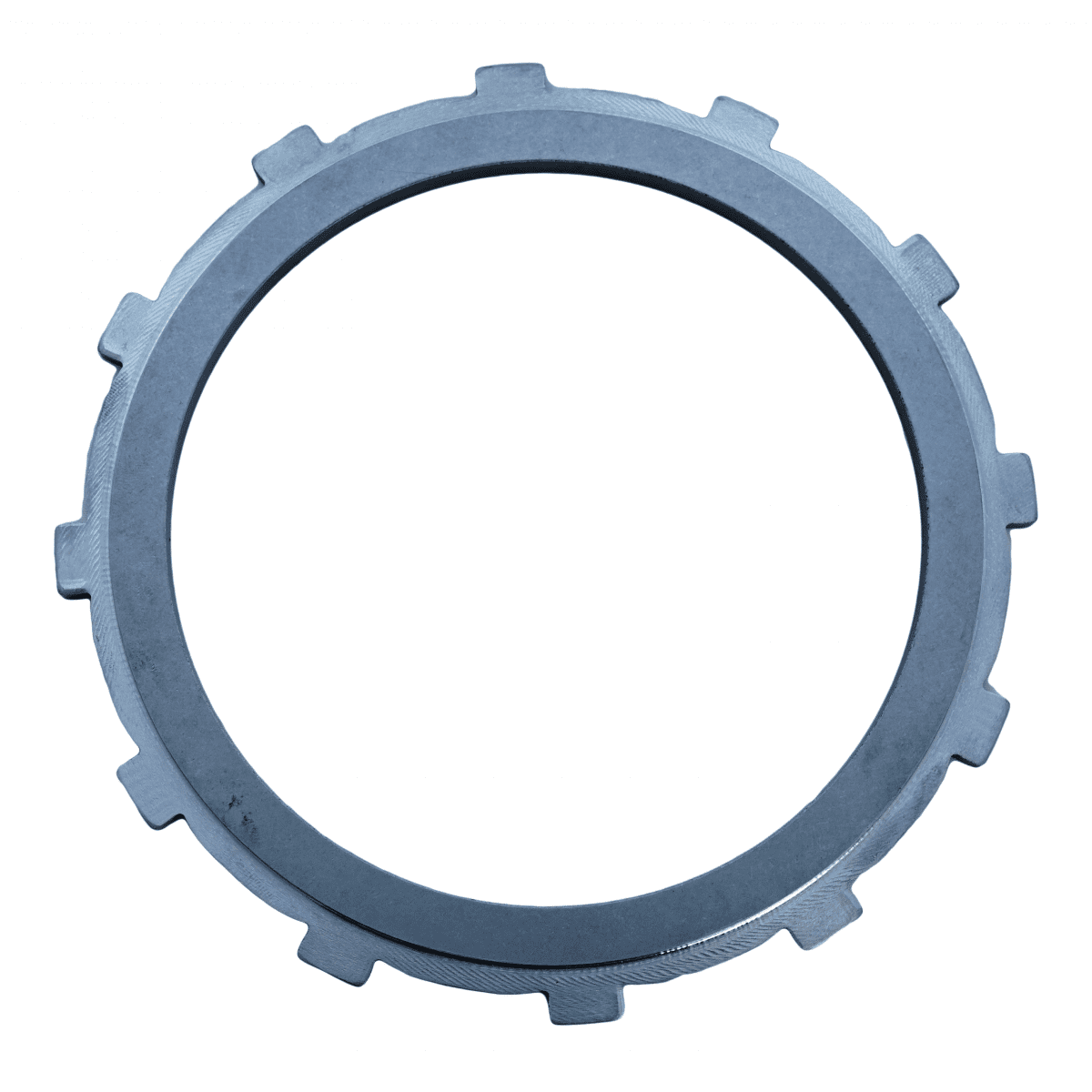

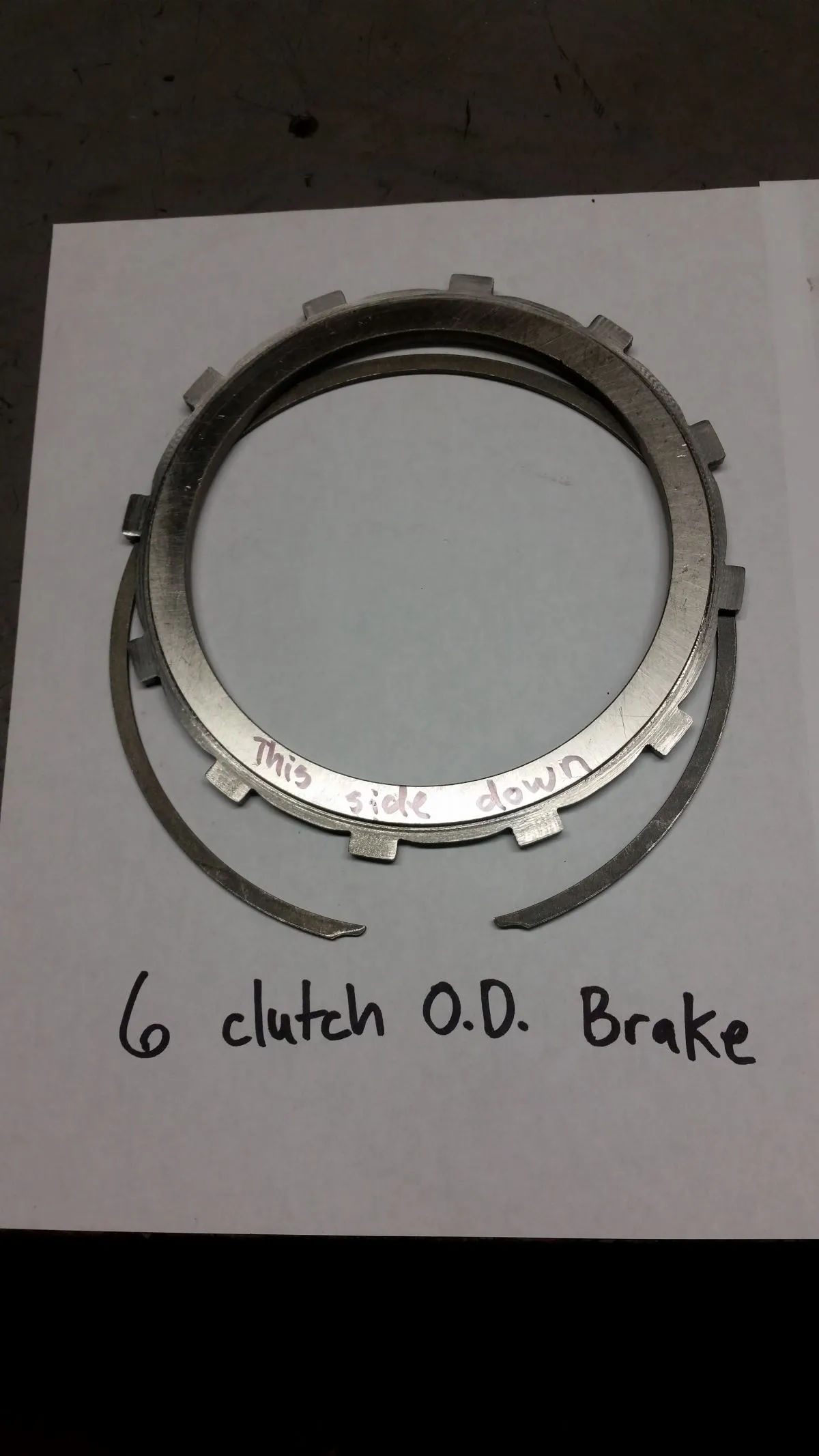

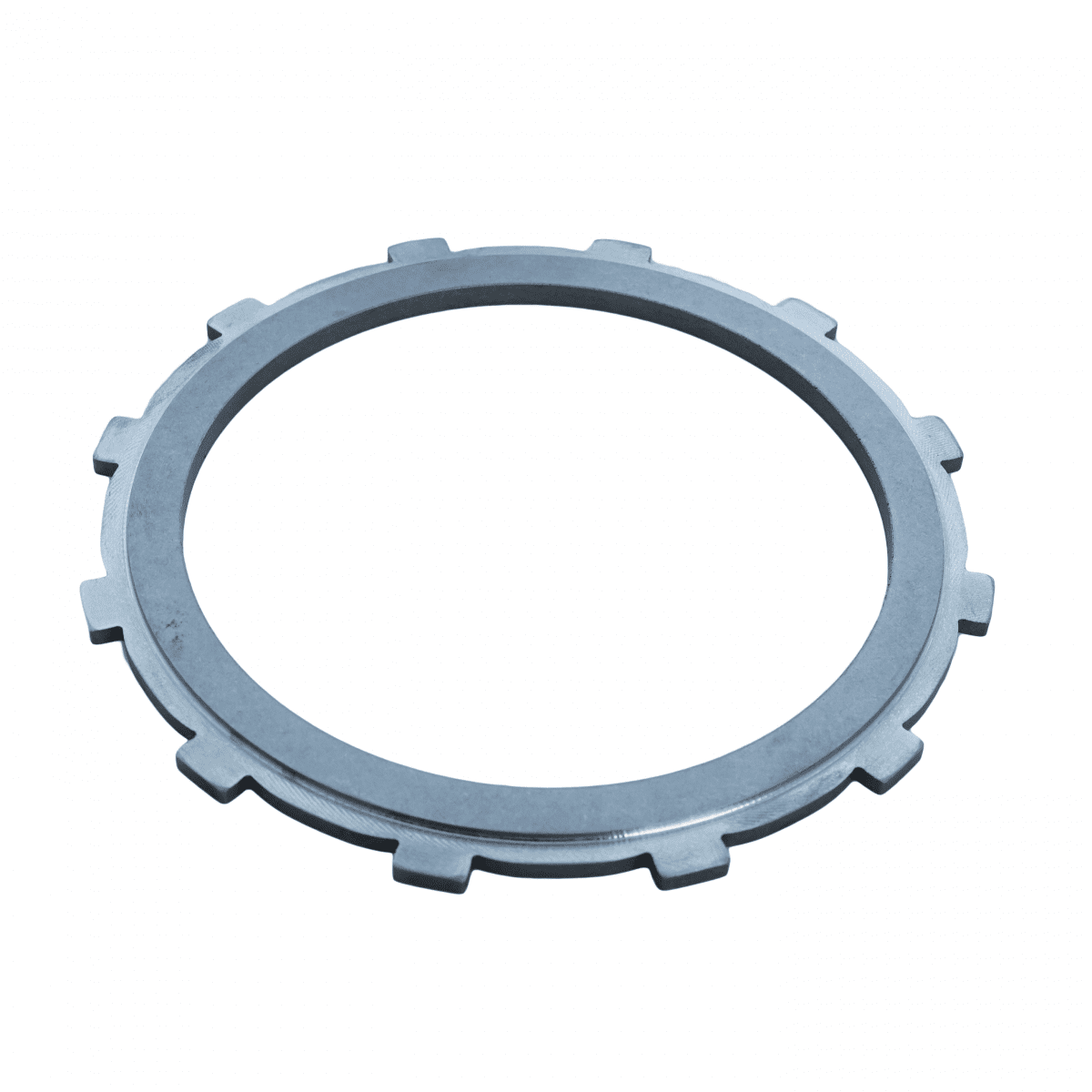

The Power Driven Diesel Machined/Stepped Overdrive Brake Reaction Plate allows for more overdrive brake clutches. Required to fit 6 overdrive clutches in A518, 46RH, 47RH, 47RE, 48RE.

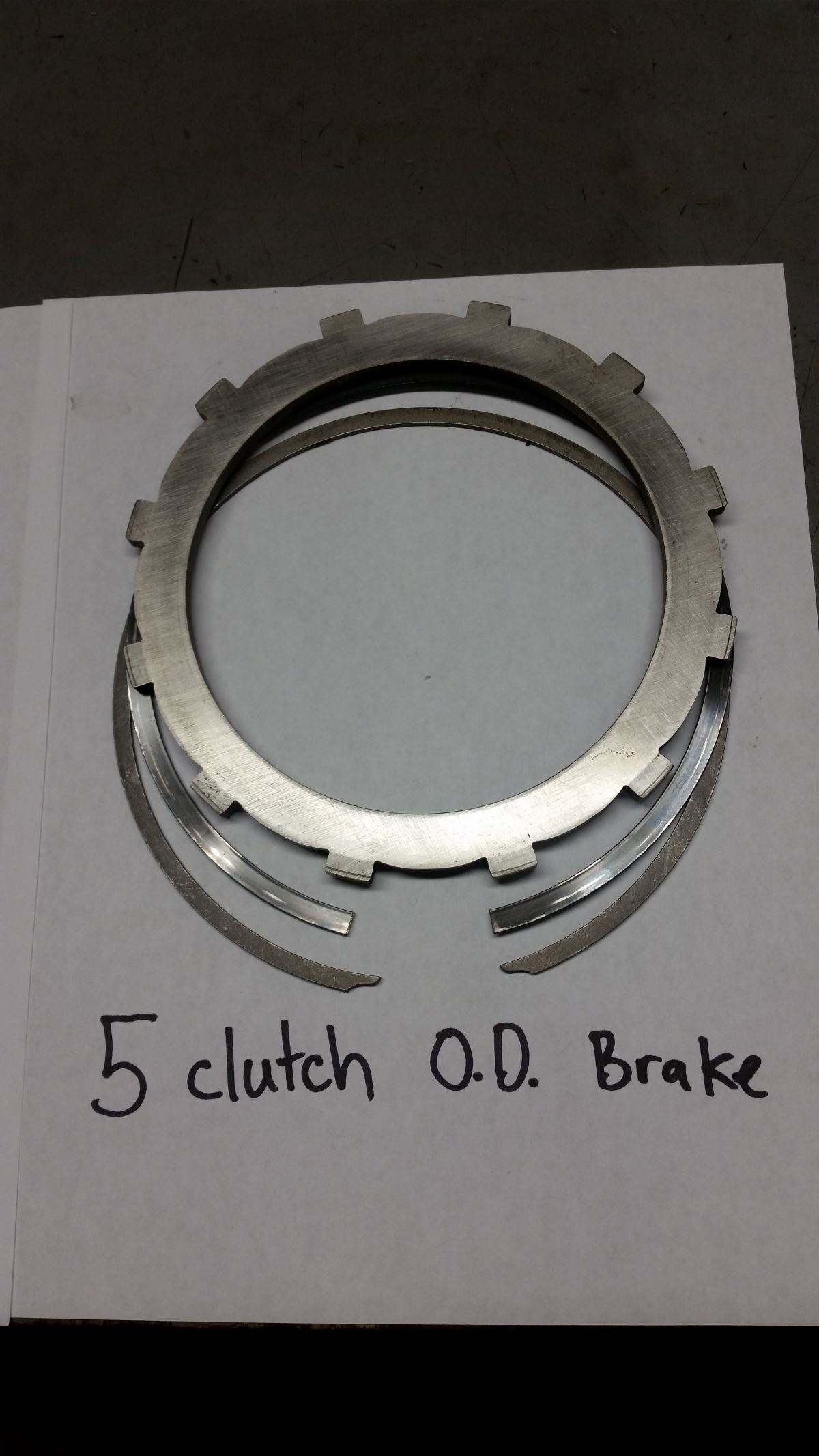

The factory 0.215″ plate is machined down to a 0.140″ step at snap ring area. To use this plate, only 1 of the 2 lower snap rings are used, typically the wide, thin waved snap ring is discarded, and the lowest narrower 0.080″ thick, flat snap ring is reused.

Weight 0.51875 lbs
Dimensions 1 × 1 × 1 in
Snap Ring Options

None, OD Brake Flat Snap Ring
