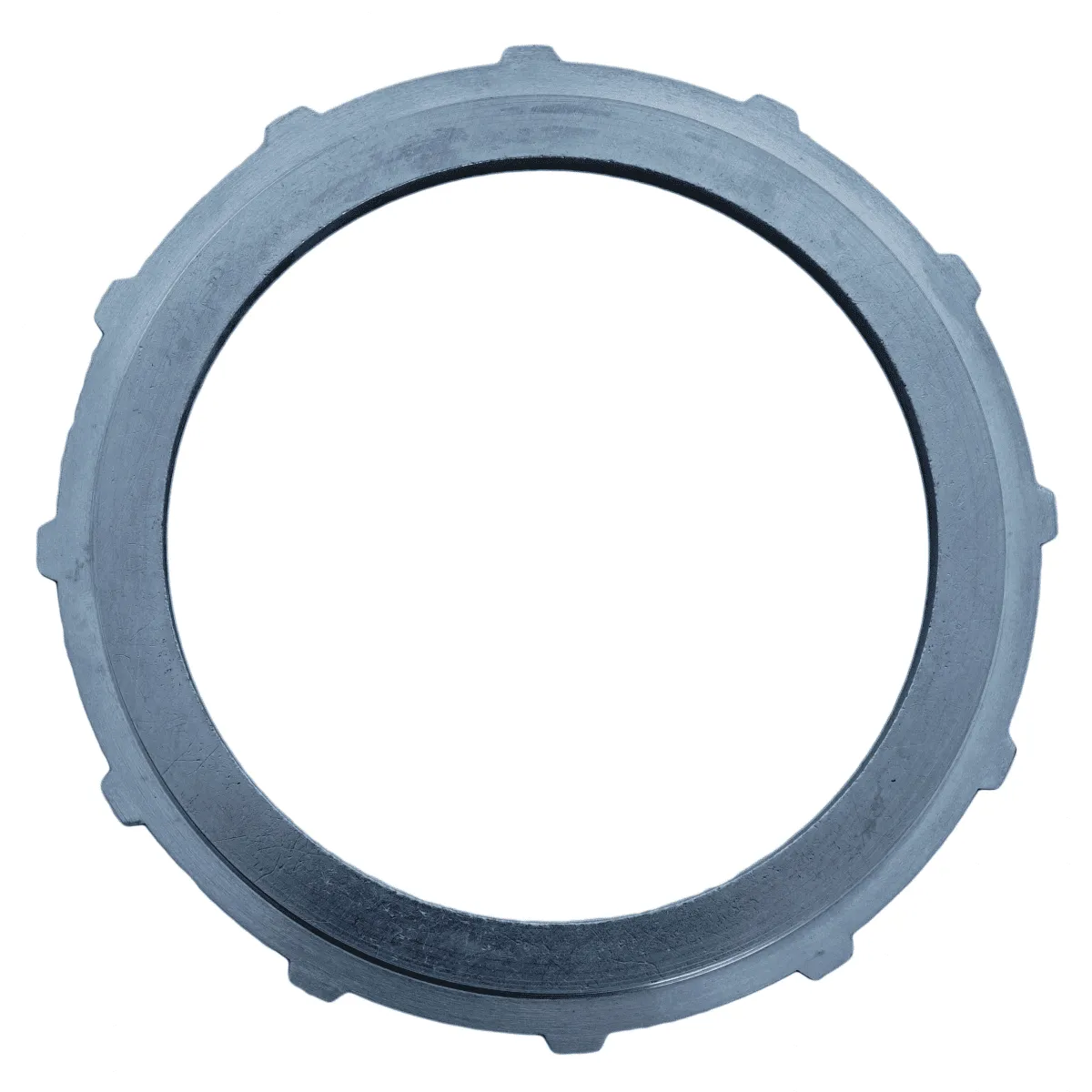

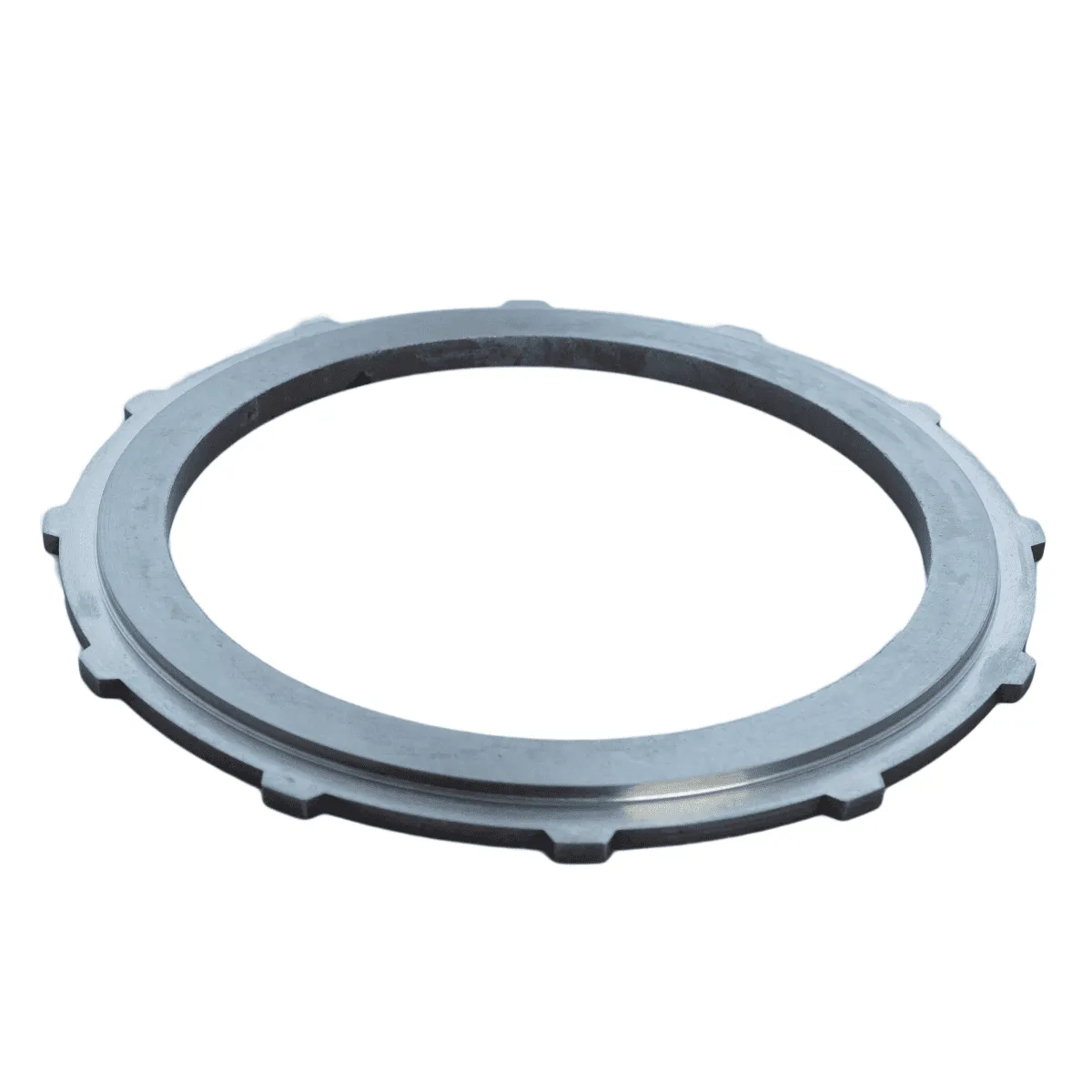

Power Driven Diesel offers this machined stepped 3rd/direct reaction plate to allow for more third-gear direct clutches. Required to fit 6 GPZ clutches in a 47RH or 47RE drum and up to 7 GPZ clutches in a 48RE drum.

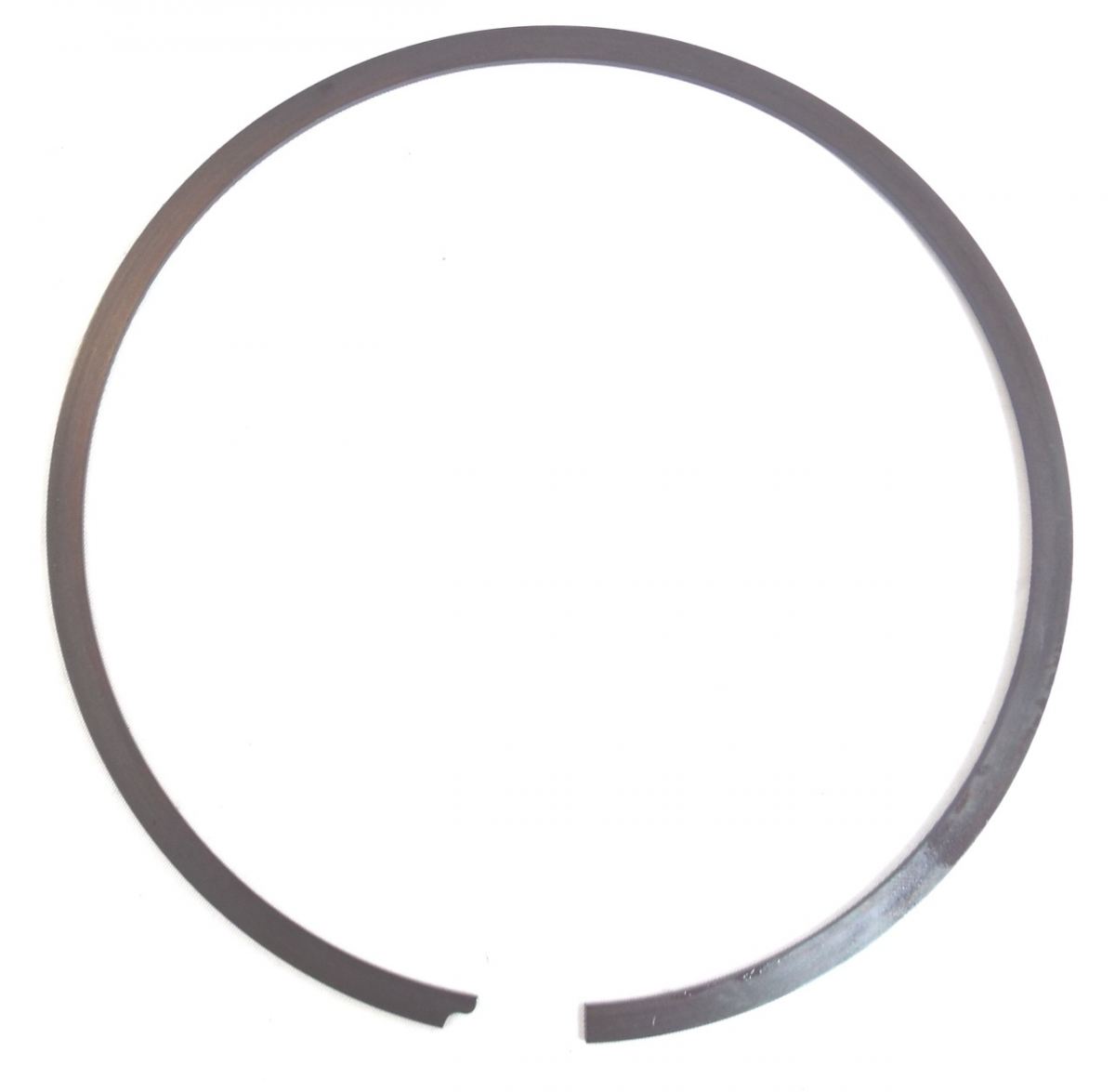

Note: Some early 47RH and 47RE third/direct drums have a taller aluminum apply piston and will require a new thin .062″ snap ring to ensure that adequate clutch clearance is maintained. A minimum of .012″ per clutch and a maximum of .020″ per clutch is recommended for most applications.
Upgrade your transmission system with the machined stepped third/direct reaction plate for increased clutch capacity and improved performance.
Compatible with:
- 1994 Dodge 5.9L 12v Cummins
- 1995 Dodge 5.9L 12v Cummins
- 1996 Dodge 5.9L 12v Cummins
- 1997 Dodge 5.9L 12v Cummins
- 1998 Dodge 5.9L 12v Cummins
- 1998.5 Dodge 5.9L 24v Cummins
- 1999 Dodge 5.9L 24v Cummins
- 2000 Dodge 5.9L 24v Cummins
- 2001 Dodge 5.9L 24v Cummins
- 2002 Dodge 5.9L 24v Cummins
- 2003 Dodge 5.9L 24v Cummins
- 2004 Dodge 5.9L 24v Cummins
- 2004.5 Dodge 5.9L 24v Cummins
- 2005 Dodge 5.9L 24v Cummins
- 2006 Dodge 5.9L 24v Cummins
- 2007 Dodge 5.9L 24v Cummins
*May not work for all builds due to other engine/vehicle modifications
Frequently bought with:
Dodge \ Ram Diesel
Power Driven 10 AN Block Oil Drain Fitting 89-07 Dodge Cummins
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 7.5 × 7.5 × 1 in |
| Extended Warranty | No Extended Warranty, 1-Year Extended Warranty, 2-Year Extended Warranty, 3-Year Extended Warranty |
