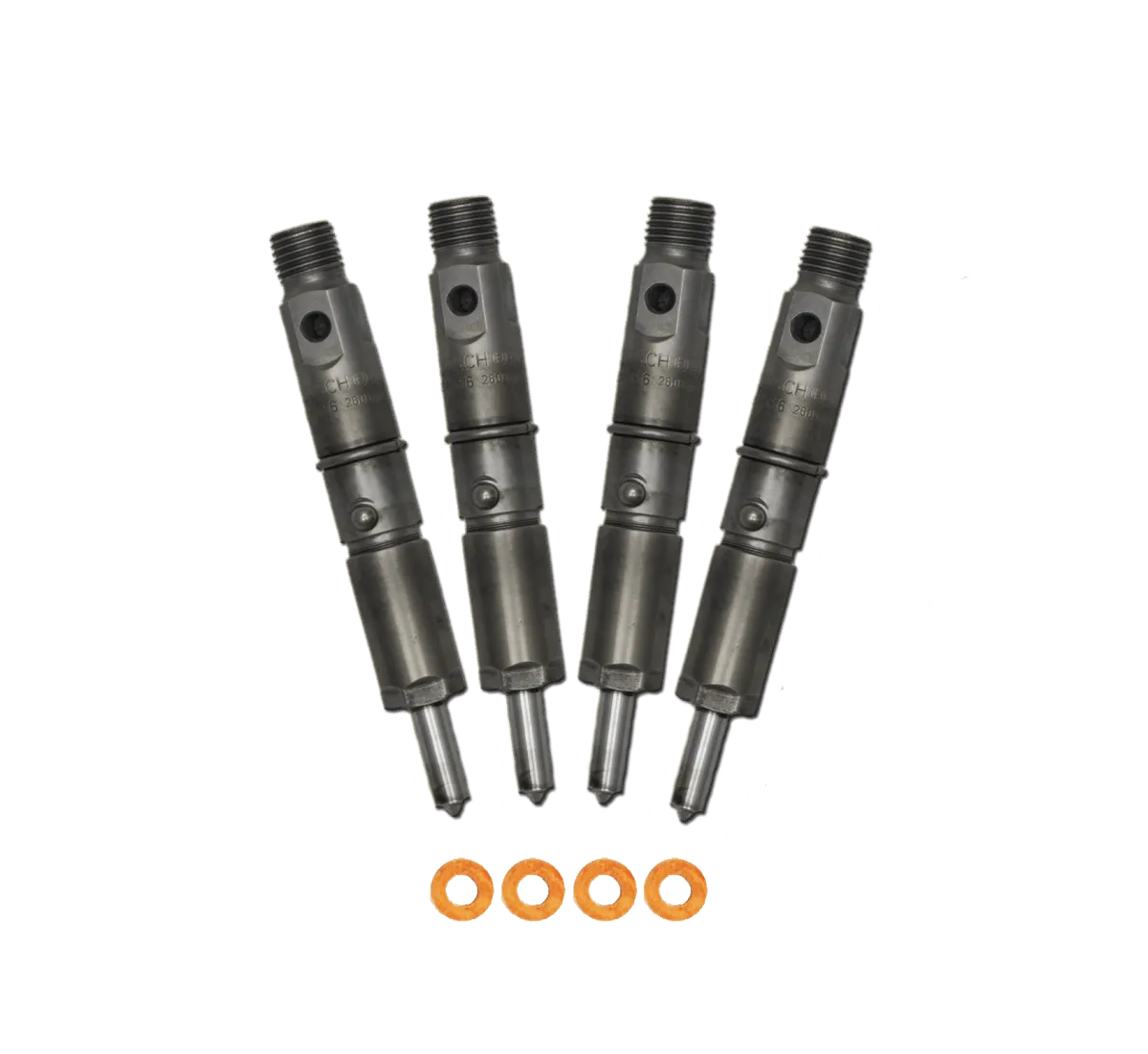

Power Driven 4BT P-Pump Injector Set
From $510.00
- Power Driven Diesel 4BT P-Pump Injector Set (60000000059)
Features:
- Varied nozzle sizes
- SAC or VCO-style nozzle
- 145-148-degree spray angle
- Generally considered to be 90 hp over stock
- Set of 6 injectors
- Includes injector install kit
This product cannot ship to California
Power Driven Diesel 4BT P-Pump Injector Sets are built, tested, and calibrated to exacting standards at our shop in Utah, ensuring high quality and consistent performance before they go out the door. From daily drivers, to work trucks, to dedicated competition vehicles, our injectors have proven themselves. Each set of injectors comes with new sealing washers, or a complete installation kit is optional as well. Power Driven Diesel 4BT P-Pump Injector Sets are a cost-effective and durable option for upgrading your 4BT P-pump conversion!
Would you like to know more? Our tech support staff frequently receives these common questions about injectors:
What’s the difference between 5-hole, 6-hole, and 7-hole injectors?
For a given flow amount, a nozzle with a smaller number of holes and a larger hole size will develop a more powerful jet of fuel, which will penetrate deeper into the piston bowl. This means the fuel jet will have some resistance to ignition until it is farther into the bowl. Conversely, a nozzle of the same flow amount, but with a larger number of holes and smaller hole size will produce a finer spray of fuel, which doesn’t penetrate as far into the bowl but ignites more readily. The amount of bowl penetration that is ideal depends on the rpm and boost level of the application.
At low rpm, the 7-hole nozzle atomizes the fuel into the charge air better, which results in increased burn efficiency. However, there is a crossover point around 2,000 rpm where the deeper penetration of the 6-hole injector nozzle is required to maintain burn efficiency at higher levels of boost and rpm, as the charge air conditions in the bowl become increasingly dense and turbulent. While apparent, these differences between 6 and 7-holes are minimal until 3,000 rpm. Overall, the 7-hole nozzle is by far the most common and is the best choice for most 24v applications. 6-hole injectors may perform better on trucks running a lot of boost and at a higher rpm.
Which is better, SAC or VCO nozzles?
For the best explanation and demonstration of nozzle types, check out the video above!
What is the spray angle, and which one is right for me?
The spray angle, or spray pattern, is another variable in the injector equation. This refers to the built-in cone angle of the injector nozzle itself. Normally, the injector spray angle and piston bowls should be matched for optimal performance. Generally, 2nd-gen 12v trucks with stock pistons will run best with a 145-degree spray angle. When mixing and matching spray angles and piston bowls, one must be careful. Putting 155-degree injectors in an engine with 145-degree pistons will result in high EGTs and a very hazy, smokey exhaust due to the fuel spraying outside the bowl. The notorious marine 370 hp injectors used in days past had a 155-degree spray pattern and gave performance injectors a bad name for a long time. On the other hand, we have had good results running 145-degree injectors in 155-degree piston bowls. This is especially apparent on builds with high injection timing.
Today, we offer a wide assortment of performance injectors and nozzles with spray angles tailored to your application.
