Simply stated, more is always better when it comes to transmission fluid. The more fluid there is, the cooler the transmission runs and the cleaner the fluid stays, which helps your transmission last as long as possible. This is why Power Driven Diesel has developed the perfect Deep Transmission Pan for your Dodge Cummins.

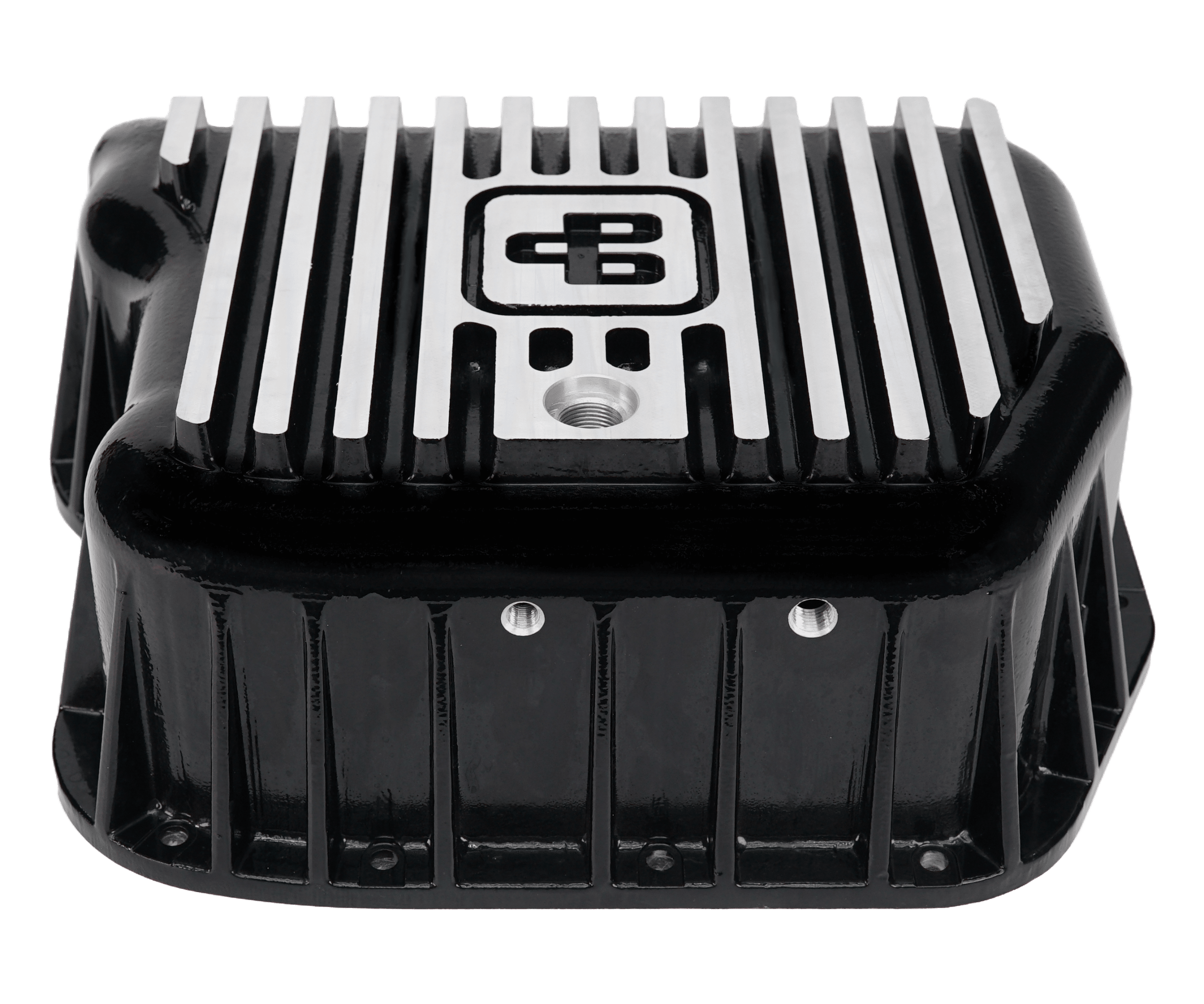

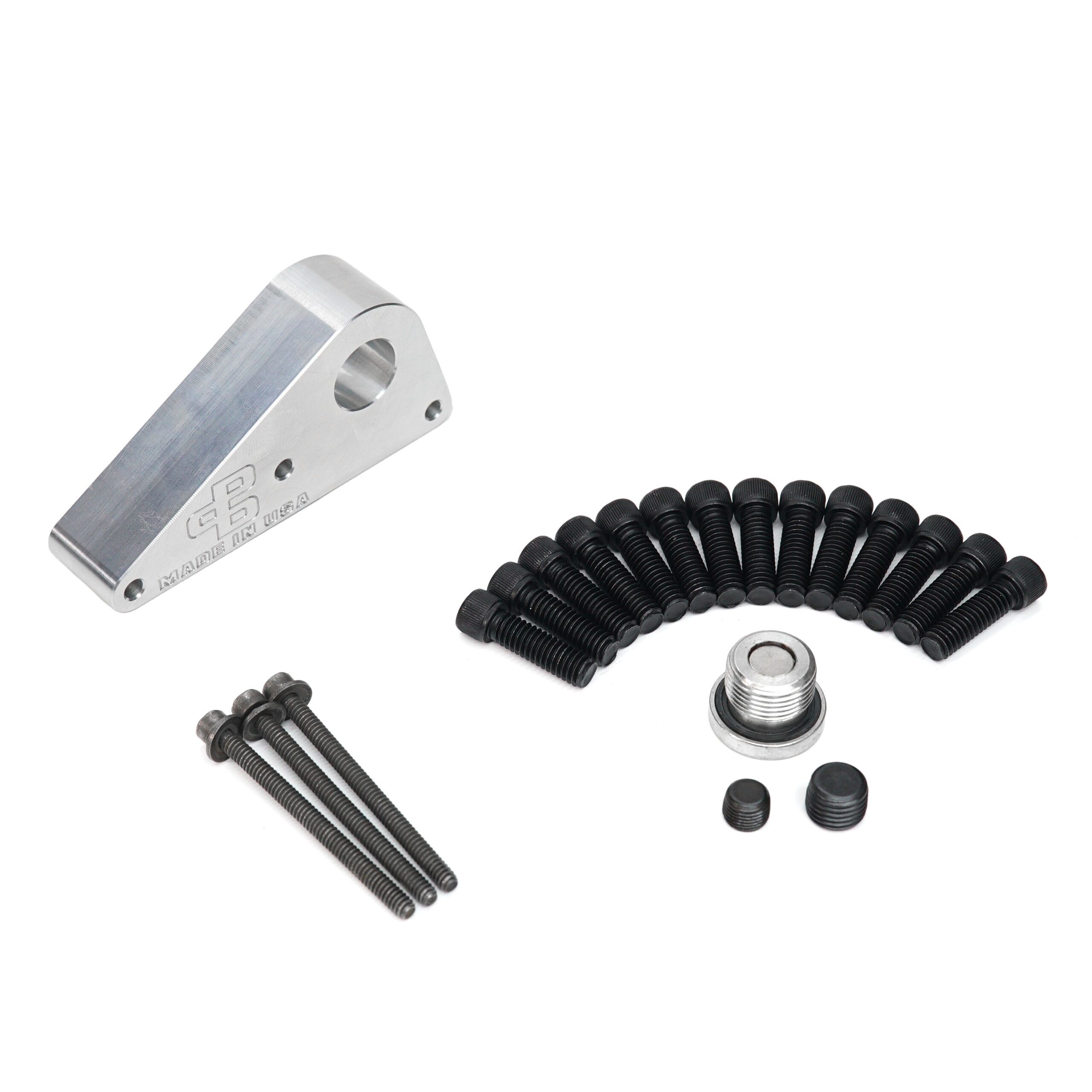

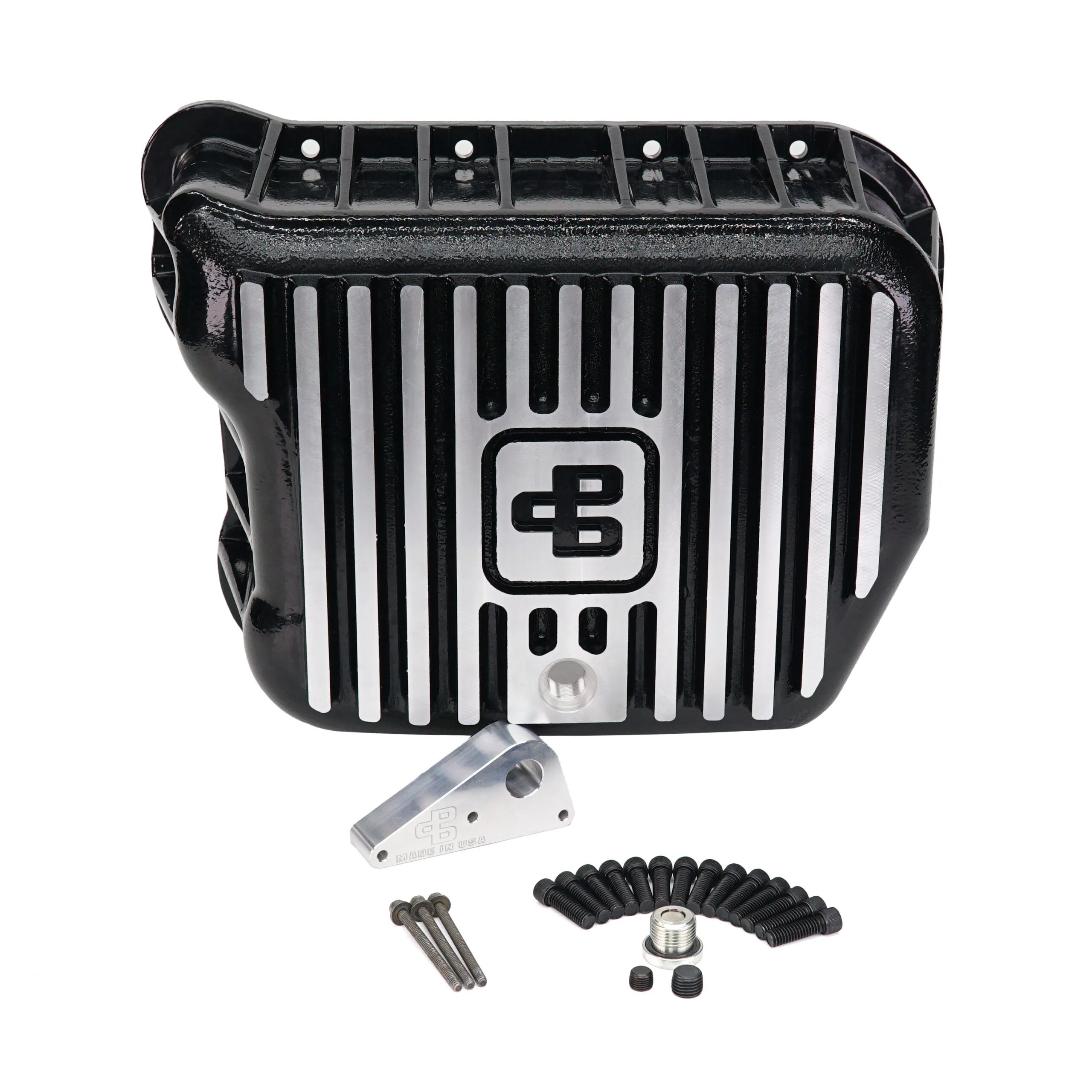

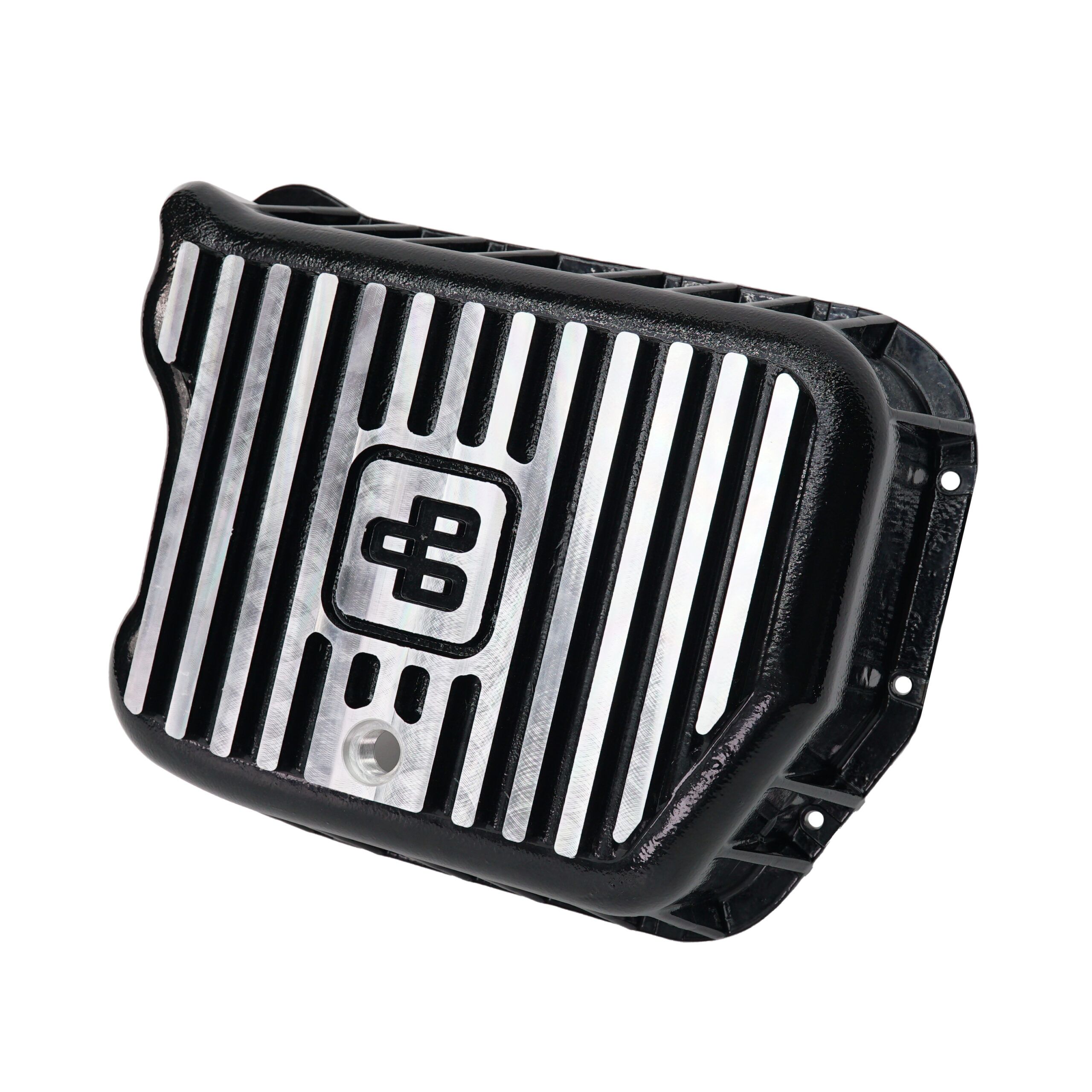

Add 4 quarts of additional fluid with our newly designed Deep Transmission Pan. Large 3/4″ cooling fins on the outside coupled with internal heat sink fins reduce operating temperatures by up to 20 degrees. The internal fins are oriented to improve drainage, reducing the mess made when the pan is removed to service the transmission. The perimeter fins have been removed on the driver’s side, making our deep pan ready for full manual valve body installation and maintenance. Our in-house machined billet filter spacer relocates the filter to take advantage of the pan’s increased depth. It seals to the valve body with an O-ring, ensuring leak-free performance, and features a 3-bolt design for ultimate rigidity. The pan has a 6″ overall depth and comes equipped with a magnetic drain plug for ultimate debris collection. Pans are pre-tapped and plugged with both 1/4″ and 1/8″ NPT threads, which are the most common transmission pan temperature sensor sizes. Allen head mounting bolts and a non-reusable transmission pan gasket come standard with this kit.
Compatible with:
- 1989 Dodge 5.9L 12v Cummins
- 1990 Dodge 5.9L 12v Cummins
- 1991 Dodge 5.9L 12v Cummins
- 1992 Dodge 5.9L 12v Cummins
- 1993 Dodge 5.9L 12v Cummins
- 1994 Dodge 5.9L 12v Cummins
- 1995 Dodge 5.9L 12v Cummins
- 1996 Dodge 5.9L 12v Cummins
- 1997 Dodge 5.9L 12v Cummins
- 1998 Dodge 5.9L 12v Cummins
- 1998.5 Dodge 5.9L 24v Cummins
- 1999 Dodge 5.9L 24v Cummins
- 2000 Dodge 5.9L 24v Cummins
- 2001 Dodge 5.9L 24v Cummins
- 2002 Dodge 5.9L 24v Cummins
- 2003 Dodge 5.9L 24v Cummins
- 2004 Dodge 5.9L 24v Cummins
- 2004.5 Dodge 5.9L 24v Cummins
- 2005 Dodge 5.9L 24v Cummins
- 2006 Dodge 5.9L 24v Cummins
- 2007 Dodge 5.9L 24v Cummins
*May not work for all builds due to other engine/vehicle modifications
