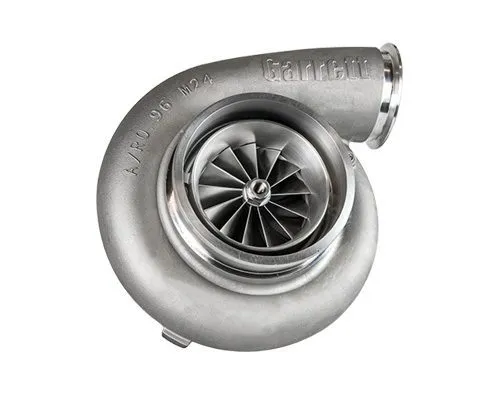

Garrett Turbos GTX5544R GEN II Turbocharger

$5,205.71 – $5,976.34

-

Horsepower: 1400 – 2850 | Displacement: 3.0L – 12.0L

Features:

  • GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • 102mm AND 106mm COMPRESSOR OPTIONS
  • NEW FULLY-MACHINED SPEED SENSOR PORT
  • IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
  • LIGHT WEIGHT BILLET BACKPLATE
  • SFI SUPER CORE AND TURBINE OPTIONS AVAILABLE
  • V-BAND COMPRESSOR OUTLET CONFIGURATION
  • (NEW) BACKPLATE TO COMPRESSOR HOUSING O-RING
SKU: GTX5544R Category:

Horsepower: 1400 – 2850 | Displacement: 3.0L – 12.0L

Features

  • GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • 102mm AND 106mm COMPRESSOR OPTIONS
  • NEW FULLY-MACHINED SPEED SENSOR PORT
  • IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
  • LIGHT WEIGHT BILLET BACKPLATE
  • SFI SUPER CORE AND TURBINE OPTIONS AVAILABLE
  • V-BAND COMPRESSOR OUTLET CONFIGURATION
  • (NEW) BACKPLATE TO COMPRESSOR HOUSING O-RING



Weight N/A
Dimensions N/A
Compressor Size (in mm)

102, 106
Turbine Housing

No Turbine Housing, 1.00 T6 V-band Outlet 84 Trim, 1.12 T6 V-band Outlet 84 Trim, 1.24 T6 V-band Outlet 84 Trim, 1.40 T6 V-band Outlet 84 Trim, 1.78 T6 V-band Outlet 84 Trim, 1.00 T6 V-band Outlet 84 Trim SFI Certified Turbine Housing, 1.12 T6 V-band Outlet 84 Trim SFI Certified Turbine Housing, 1.24 T6 V-band Outlet 84 Trim SFI Certified Turbine Housing, 1.40 T6 V-band Outlet 84 Trim SFI Certified Turbine Housing, 1.78 T6 V-band Outlet 84 Trim SFI Certified Turbine Housing
