Edge Products EAS PRESSURE SENSOR – 0-100 PSIG (98607)

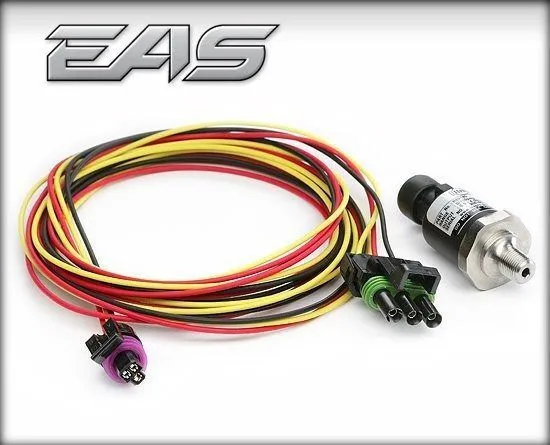

The EAS Pressure Sensor is a 0 – 100 PSIg 1/8 NPT sensor that plugs directly into the Universal Sensor Input system (p/n 98605). The Pressure Sensor comes equipped with the proper wires and connectors to plug right into the Universal Sensor Input system saving time and money on cutting, splicing, and crimping wire terminals to connect the sensor. Use the Pressure Sensor to monitor data such as Boost PSI, Fuel Rail Pressure, Air Bag Pressure, Lift Pump Pressure, Pre and Post Intercooler Pressure and many more.

In order for this pressure sensor to work with your CTS3, you’ll also need the Universal Sensor Input harness (98605)
My Style Software
Add up to 16 additional sensors with the EAS universal senor input. Then setup, configure and customize those sensors through Edges My Style software package. Then Edge My Style software will recognize and Universal Sensor Input that has been connected to your CS2, CTS2 or CTS3 and allow the user to change PID name, gauge name description and units. The user can choose from a number of preconfigured sensors or enter in a custom look-up table to translate the input voltage to the measured parameter value and units.

EGT PROBE
The EGT probe is a sensor that allows users to monitor critical Exhaust Gas Temperatures to ensure added power is not creating excessive heat which, in turn can cause engine damage. With EAS system a user can connect multiple EGT sensors to monitor temperatures in different locations and compare readings to be even more precise.

TURBO TIMER
A turbo timer is a device designed to keep an engine running for a pre-specified period of time or a until a specific temperature is reached in order to automatically execute the cool-down period required to prevent premature turbo wear and failure. This also allows the lubricating oil from the engine to circulate properly so the turbine wont burn the lubricating oil that would otherwise be trapped within the charger with the turbine rotating at a high speed.

EAS UNIVERSAL SENSOR INPUT
The EAS Universal Senor Input provides the ability to read any 0-5 volt signal and translate that signal a meaningful value for display on the Edge CS2, CTS2 or CTS3. This means you can add custom temperature, pressure, Air/fuel and even travel/position gauges to your Edge CS2, CTS2 or CTS3! Using the Edge Accessory System provides the following benefits:
Using My Style software, sensors can be easily configured and renamed.
Up to 8 Universal Sensor Input will support up to 2 sensors for the vehicle. Each Universal Sensor Input will support up to 2 sensors for a total of 16 additional sensors that can be added to your CS2, CTS or CTS3 device.
Note: Sensors from the manufactures other than Edge can also be attached to a CS2, CTS2 or CTS3 device through the EAS universal sensor input.
Eliminates the necessity of routing multiple wires to the CS2, CTS2 or CTS3 monitor.

EAS AMBIENT TEMPERATURE SENSOR
If your vehicle is not equipped with an outside temperature sensor then this is a must have! The EAS Ambient Temperature Sensor is a 40F to 230 F Waterproof 0.2 diameter sensor ready to plug into Edges Universal Sensor Input system. Now you’ll never wonder what outside temperature is again.* – EAS Starter Kit Cable required ** – EAS Starter Kit Cable and EAS Universal Sensor Input required. The EAS Starter Kit Cable is required to connect a EAS system to any CS2, CTS2 or CTS3 device. Only one EAS starter kit Cable required per CS2, CTS2 or CTS3 device. The EAS Universal (5 volt) Sensor Input is also required to add any sensor. One Universal Sensor Input can connect up to 2 different sensors.

EAS PRESSURE SENSOR Part Numbers & Applications:
EAS Starter Kit Cable (required For EAS) – 98602EAS
EGT Expandable w/o Starter Kit – 98611EAS
Turbo Timer (Dodge 2006-2012 Only) – 98612EAS
Turbo Timer – 98604EAS
Universal Sensor Input (5 Volt) – 98605EAS
Pressure Sensor 0-100 psig 1/8 NPT – 98607EAS
-40F to 300F 1/8″ NPT Temp Sensor – 98608EAS
Ambient Temp Sensor -40F to 230F Waterproof 0.2″ diameter sensor – 9861
