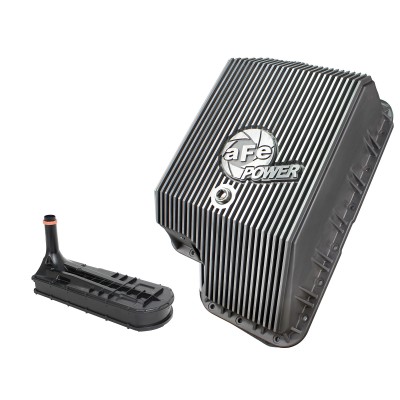

aFe (46-70120-1) Raw Transmission Pan

aFe Power’s new deep transmission pan brings performance engineering to the protection of your F5R110W and F5R110 transmissions. aFe’s transmission pan adds an additional 7.5 quarts over stock. Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling. This transmission pan is constructed out of durable die-cast A380 aluminum with reinforced ribs for maximum strength.

Internal and External Fins:
Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling.

Magnetic Drain Plug:
This system incorporates a large neodymium magnetic drain plug that captures loose particles for maximum transmission protection and can be tightened using a 1/2″ square socket drive.

1/8″ NPT Port:
Threaded 1/8″ NPT port comes ready to use for your transmission temperature sensor.

Hassle-Free Installation:
Transmission pan comes complete with hardware, flange o-ring and transmission filter for a hassle-free installation.

Features:

• Constructed out of durable A380 die-cast aluminum
• Reinforcing ribs and raw finish with machined fins
• Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling
• A large neodymium magnetic drain plug is included to capture loose particles for maximum transmission protection
• 1/8″ NPT port comes ready to use for your transmission temperature sensor
• Comes complete with necessary hardware to bolt directly to factory location for a hassle-free installation
• Adds an additional 7.5 quarts over stock
• Requires no modification to the factory dipstick
• Includes Transmission Filter
