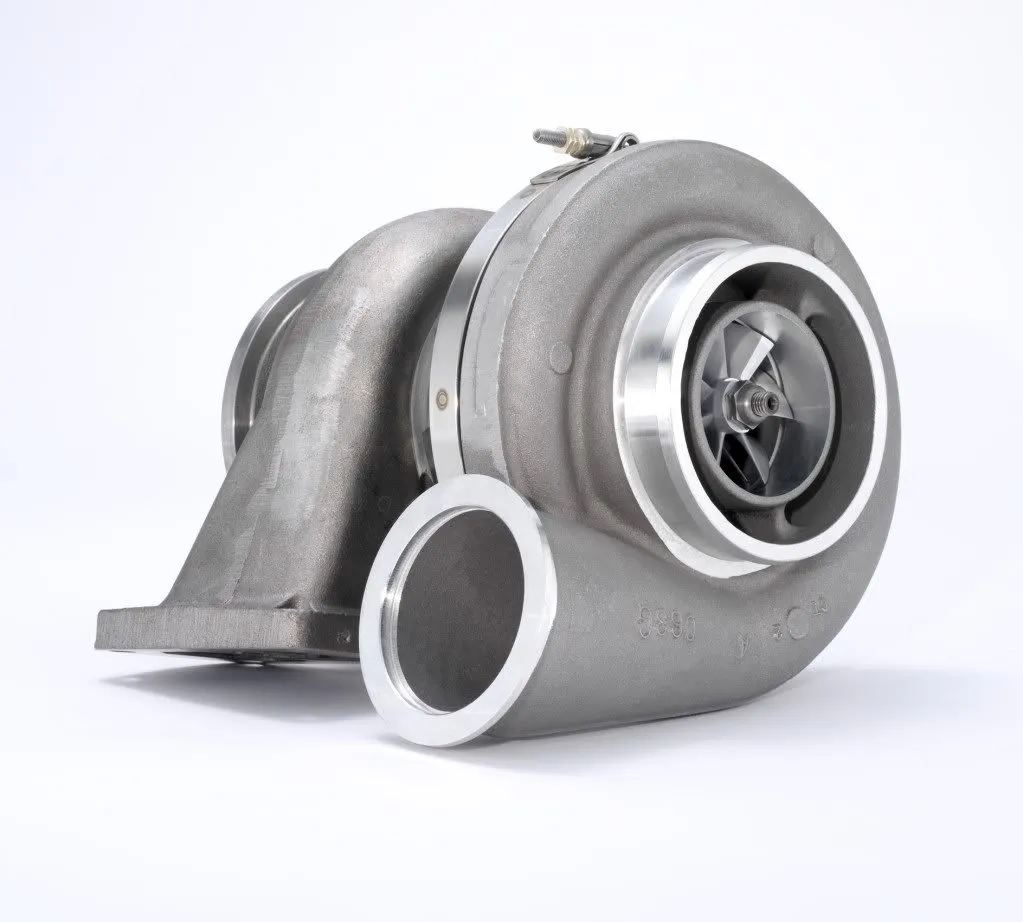

Commonly used as a big single turbo or as the atmosphere (big/top turbo) in compound turbo set-ups, this S475(SX4) turbo flows up to?100lbs/min. That’s enough flow for a maximum of 800 HP! This specific turbo has been and still is a popular application for compound set-ups where it is compounded in conjunction with the stock turbo because of its cheap pricing and availability. With this turbo you can have your cake and eat it too, have all the power you want at a budget friendly price. Whether you want to finish the quarter mile in record time, make a full pull with a sled, or just have more power to pull your camper, this turbo will help get you there.
Features:
- *800 HP Capable
- Twin hydrodynamic journal bearings
- Extended tip technology compressor wheel
- Twin scroll turbine housing
- Adjustable compressor and turbine housing orientation
- Compressor cover re-circulation grooves
- 75mm Compressor Wheel Inducer Diameter
- 88mm?Turbine Wheel Exducer?Diameter
- 1.10 A/R T4 turbine housing
Check out our Turbo Accessories to get the most out of your turbo!
*Maximum HP ratings are only attainable with proper supporting modifications
Power Driven Diesel does not recommend this turbo for most applications because it is out of its efficiency range while at the common peak towing RPM, it is widely used because it is so inexpensive and is readily available. For 400-700hp towing applications, we recommend the Borg Warner?S369 SXE turbo instead.
