A7SABF595 AirDog II-5G, DF-220-5G 2008-2010 6.4L Ford
A7SABF595 AirDog II-5G, DF-220-5G 2008-2010 6.4L Ford

AirDog II-5G DF-220-5G A7SABF595 Lift Pump 08-10 6.4L Ford

From: Original price was: $1,062.00.Current price is: $1,044.00.

  • Fits: 08-10 Ford 6.4L PowerStroke

Features:

  • 220 gph pump
  • 4-bearing motor with an intermediate shaft
  • Larger ports over previous pumps
  • Diaphragm fuel pressure regulator
  • Demand flow design
  • Reduced aeration from low flow return



Add to Wishlist
SKU: A7SABF595 Category: Tag:

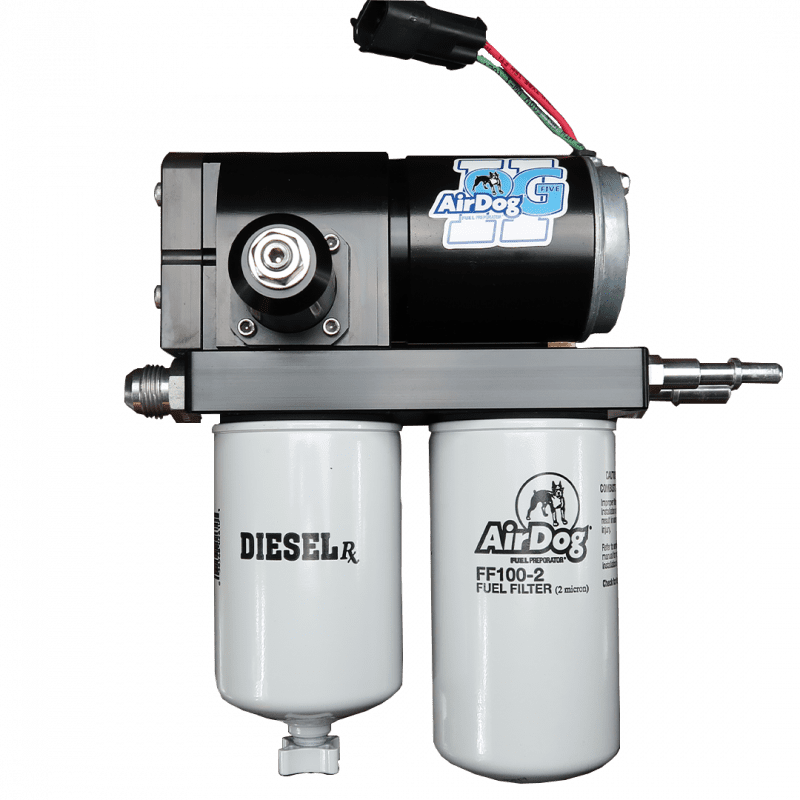

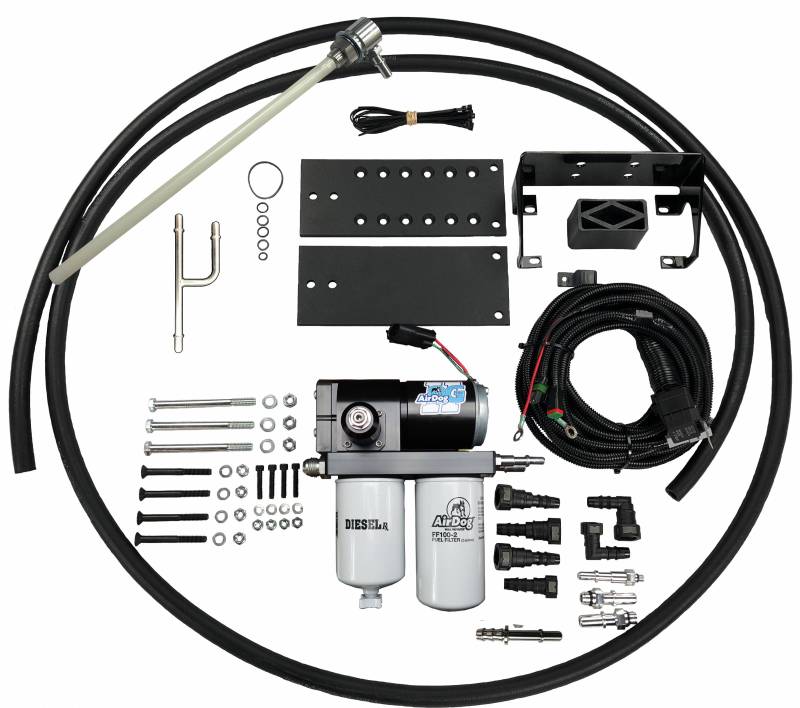

This is the A7SABF595 AirDog II-5G DF-220 fuel system for the 2008-2010 Ford 6.4L PowerStroke. This diesel lift pump mounts to the frame rail using the supplied sandwich-plate mounting system. This system uses a 5/8″ draw straw to pull fuel from the tank. The pressure side connects to the factory supply line on the frame rail. This fuel pump completely bypasses the factory fuel pump. The AirDog Air/Vapor return is sent back to the tank through a return Y that splices the AirDog return into the factory engine return. This is a 220 gph (gallon per hour) lift pump system for highly modified trucks. Check out our installation manual for a list of parts that are included with this kit.



INSTALLATION MANUAL

Weight 27 lbs
Dimensions 19 × 13 × 7 in
