A7SABD529 AirDog II-5G, DF-220-5G 2004.5-2018 Dodge Cummins
A7SABD529 AirDog II-5G, DF-220-5G 2004.5-2018 Dodge Cummins

AirDog II-5G DF-220-5G A7SABD529 Lift Pump 04.5-18 Dodge Cummins

From: $1,034.00

  • Fits: 04.5-18 Dodge/RAM Cummins

Features:

  • 220 gph pump
  • 4-bearing motor with an intermediate shaft
  • Larger ports over previous pumps
  • Diaphragm fuel pressure regulator
  • Demand flow design
  • Reduced aeration from low flow return



SKU: A7SABD529 Categories: , Tag:

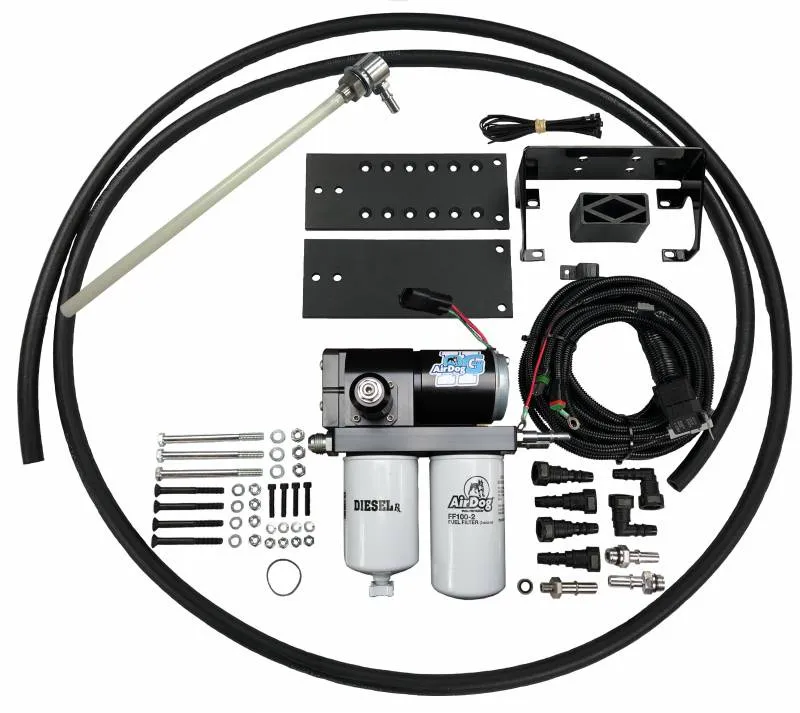

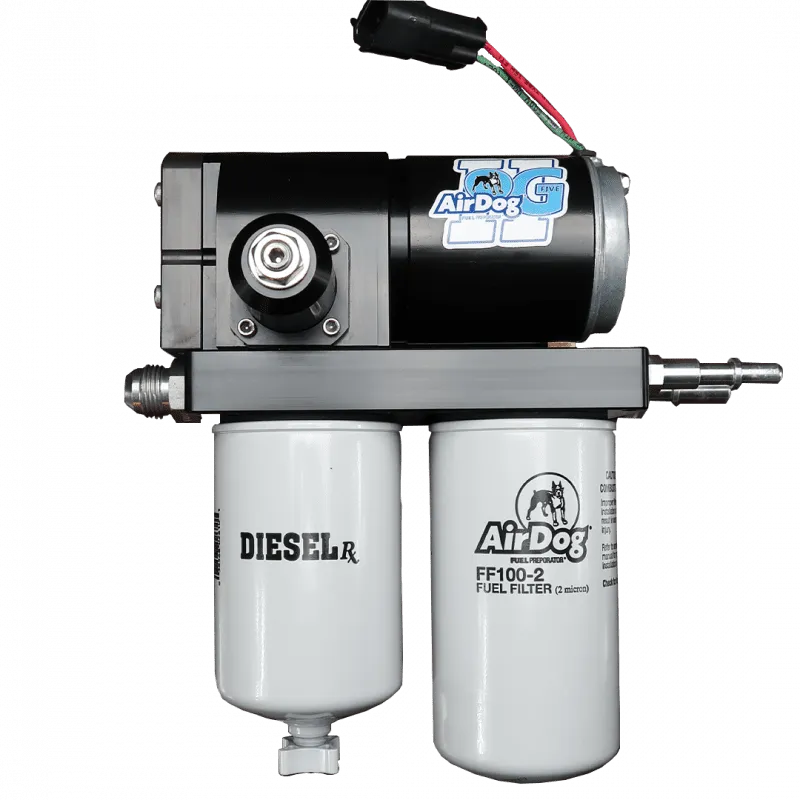

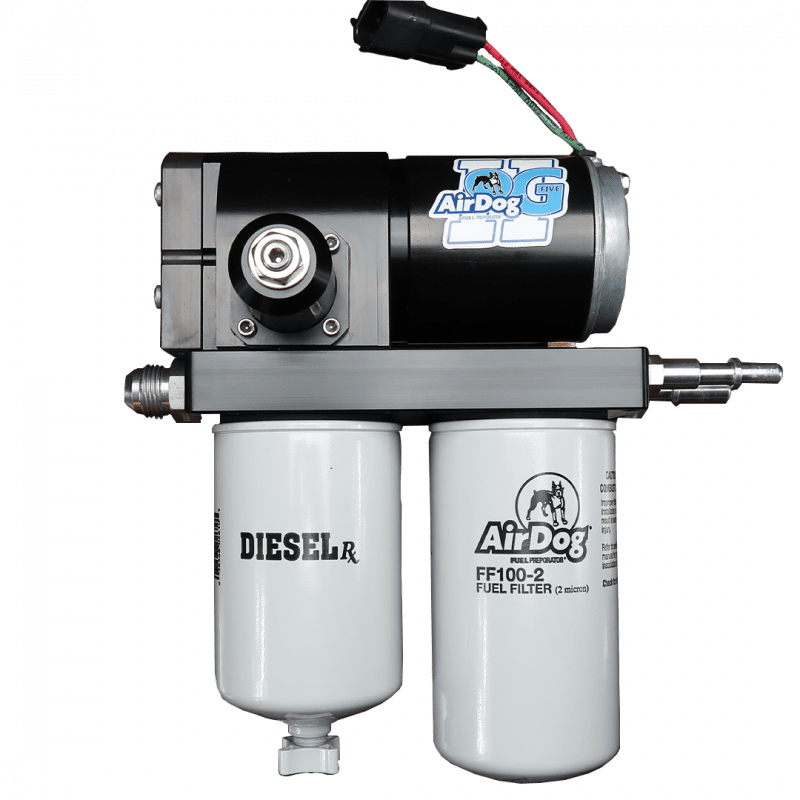

This is the A7SABD529 AirDog II-5G DF-220 fuel system for the 2004.5-2018 Dodge RAM Common Rail Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich-plate mounting system. A 5/8″ draw straw is used to pull fuel from the tank. The pressure side connects directly to the side of the injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the original suction fitting in the modified fuel module. This is a 220 gph (gallon per hour) lift pump system for highly modified trucks. Check out our installation manual for a list of parts that are included with this kit.



INSTALLATION MANUAL

Weight 27 lbs
Dimensions 19 × 13 × 7 in
