A7SABC514 AirDog II-5G, DF-220-5G 2011-2014 Chevy Duramax
A7SABC514 AirDog II-5G, DF-220-5G 2011-2014 Chevy Duramax

AirDog II-5G DF-220-5G A7SABC514 Lift Pump 11-14 Chevy Duramax

From: Original price was: $1,094.00.Current price is: $1,076.00.

  • Fits: 11-14 Chevy Duramax LML

Features:

  • 220 gph pump
  • 4-bearing motor with an intermediate shaft
  • Larger ports over previous pumps
  • Diaphragm fuel pressure regulator
  • Demand flow design
  • Reduced aeration from low flow return



SKU: A7SABC514 Category: Tag:

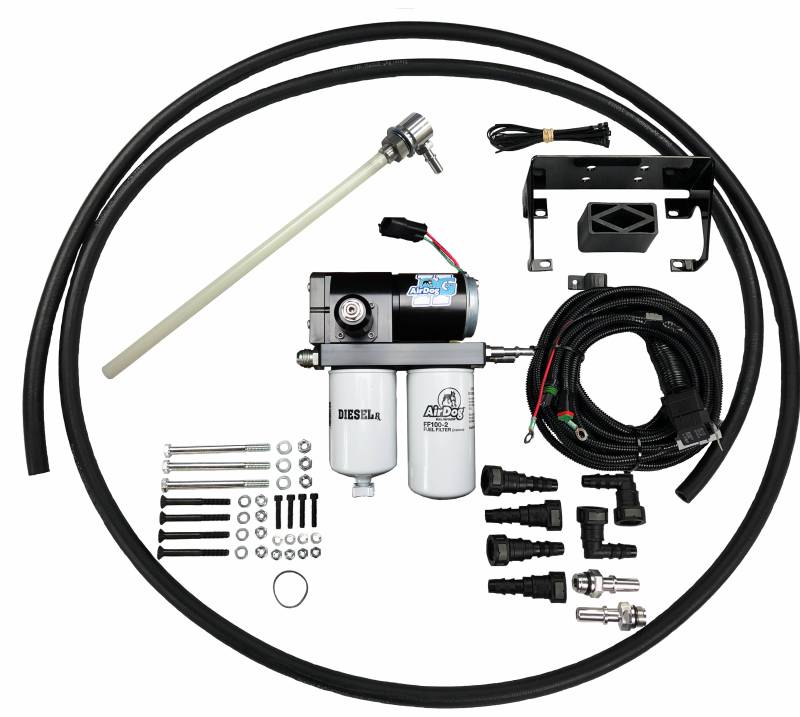

This is the A7SABC514 AirDog II-5G DF-220 fuel system for the 11-14 Chevy Duramax. This diesel lift pump mounts to the factory frame standoff in front of the fuel tank using our cradle bracket. A 5/8″ draw straw is installed in the fuel tank to draw fuel to the pump. The pressure side connects directly to the factory 1/2″ fuel line on the frame. The AirDog Air/Vapor return is sent back to the tank through the factory 12 mm suction line once the module is modified. This is a 220 gph (gallon per hour) lift pump system for heavily modified trucks (1,000 hp and above). Check out our installation manual for a list of parts that are included with this kit.



INSTALLATION MANUAL

Weight 21 lbs
Dimensions 19 × 13 × 7 in
