A7SABF593 AirDog II-5G, DF-165-5G 2003-2007 6.0L Ford

AirDog II-5G DF-165-5G A7SABF593 Lift Pump 03-07 6.0L Ford

$816.00

Fits: 03-07 6.0L Ford PowerStroke

Features:

165 gph pump
4-bearing motor with an intermediate shaft
Larger ports over previous pumps
Diaphragm fuel pressure regulator
Demand flow design
Reduced aeration from low flow return

In stock (can be backordered)

SKU: A7SABF593 Category: Lift Pump Tag: AIRDOG

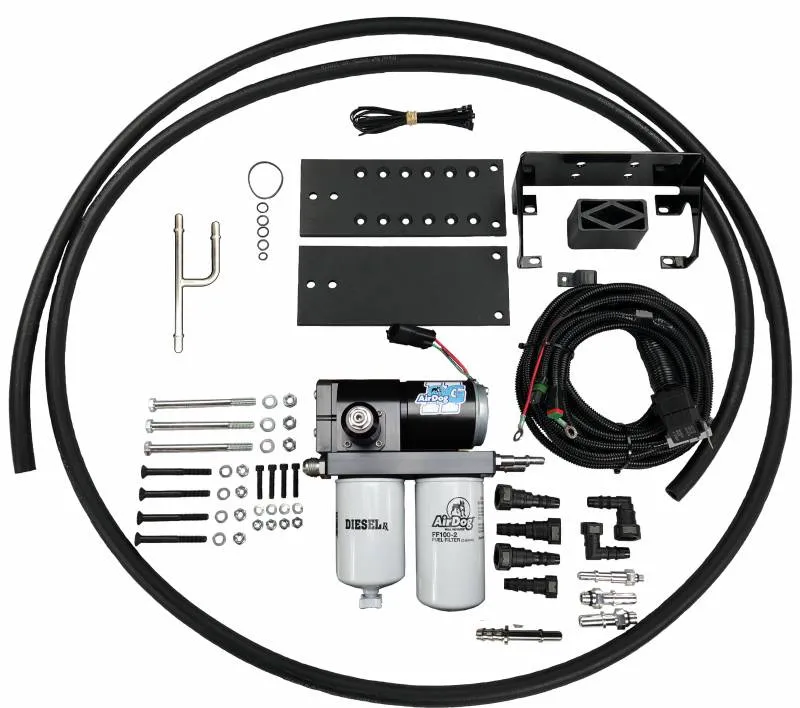

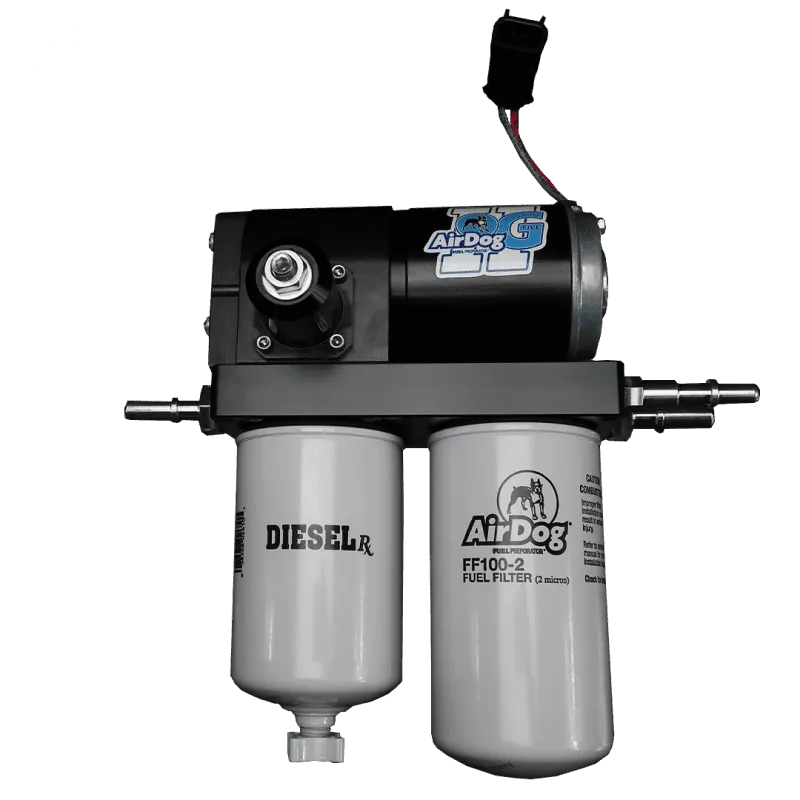

This is the A7SABF593 AirDog II-5G DF-165 fuel system for the 2003-2007 Ford 6.0L PowerStroke. This replaces the factory frame rail fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich-plate mounting system. The suction side hooks up to the factory suction line on the frame rail. The pressure side connects to the factory feed line to the injection pump. The AirDog Air/Vapor return is sent back to the tank through a return Y that ties the AirDog return to the factory engine return. This is a 165 gph (gallon per hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Weight	27 lbs
Dimensions	19 × 13 × 7 in
