A7SABF590 AirDog II-5G, DF-165-5G 2017 - 2021 6.7L Ford
A7SABF590 AirDog II-5G, DF-165-5G 2017 - 2021 6.7L Ford

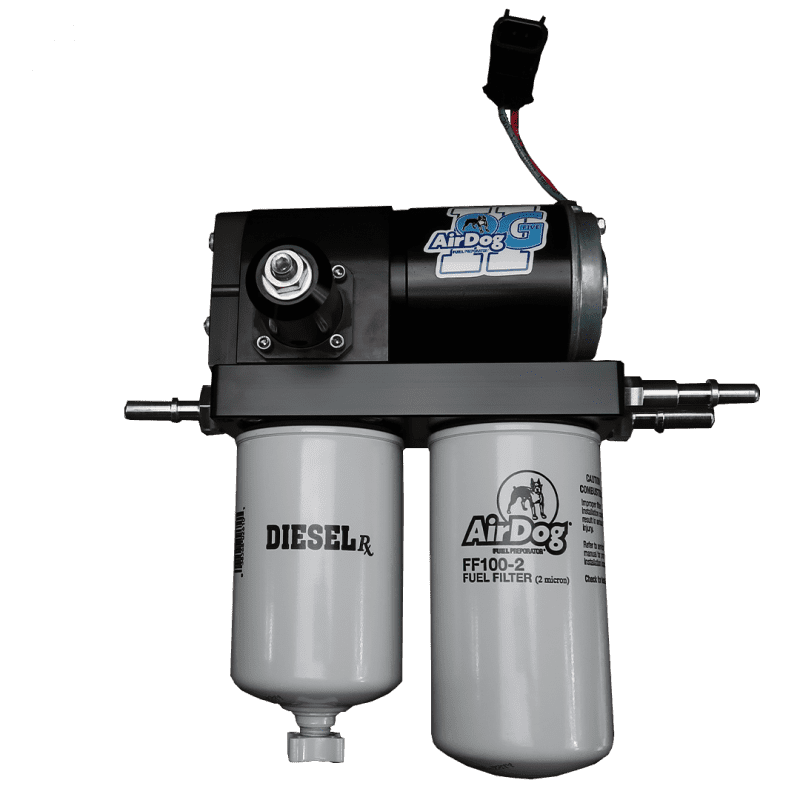

AirDog II-5G DF-165-5G A7SABF590 Lift Pump 17-22 6.7L Ford

From: Original price was: $1,094.00.Current price is: $1,076.00.

  • Fits: 17-22 6.7L Ford PowerStroke

Features:

  • 165 gph pump
  • 4-bearing motor with an intermediate shaft
  • Larger ports over previous pumps
  • Diaphragm fuel pressure regulator
  • Demand flow design
  • Reduced aeration from low flow return



SKU: A7SABF590 Category: Tag:

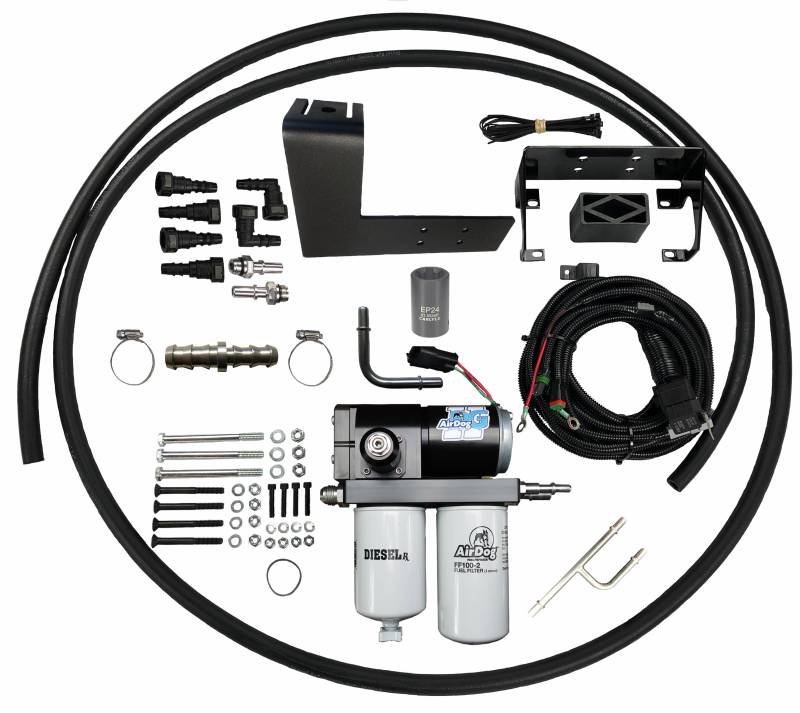

The AirDog II-5G A7SABF590 uses a bed bracket to be mounted inside the bed forward of the rear wheel. The fuel module is to be modified to allow the venturi fill system to work to ensure no 1/4 tank issues. The pump draws fuel from the modified fuel module and sends it to the factory frame rail feed line. The pressure line is tapped with a return Y to feed the venturi in the basket with pressurized fuel. The AirDog return is sent back to the modified fuel module. This is a 165 gph (gallon per hour) lift pump system for moderately modified trucks. Check out the installation manual below for a list of parts that are included in this kit.



INSTALLATION MANUAL

Weight 27 lbs
Dimensions 19 × 13 × 7 in
