AirDog II-4G (A6SABD340) Cummins 165GPH Fuel/Air Separation System (89-93)
$799.00
-
Page Superseded: Please see following page for product AirDog II-5G DF-165 | A7SABD540 | Cummins Lift Pump 89-93 12V 5.9L
Fits: 89-93 (5.9L) Dodge Cummins trucks
Non Stocking item
Out of stock
Page Superseded: Please see following page for product AirDog II-5G DF-165 | A7SABD540 | Cummins Lift Pump 89-93 12V 5.9L

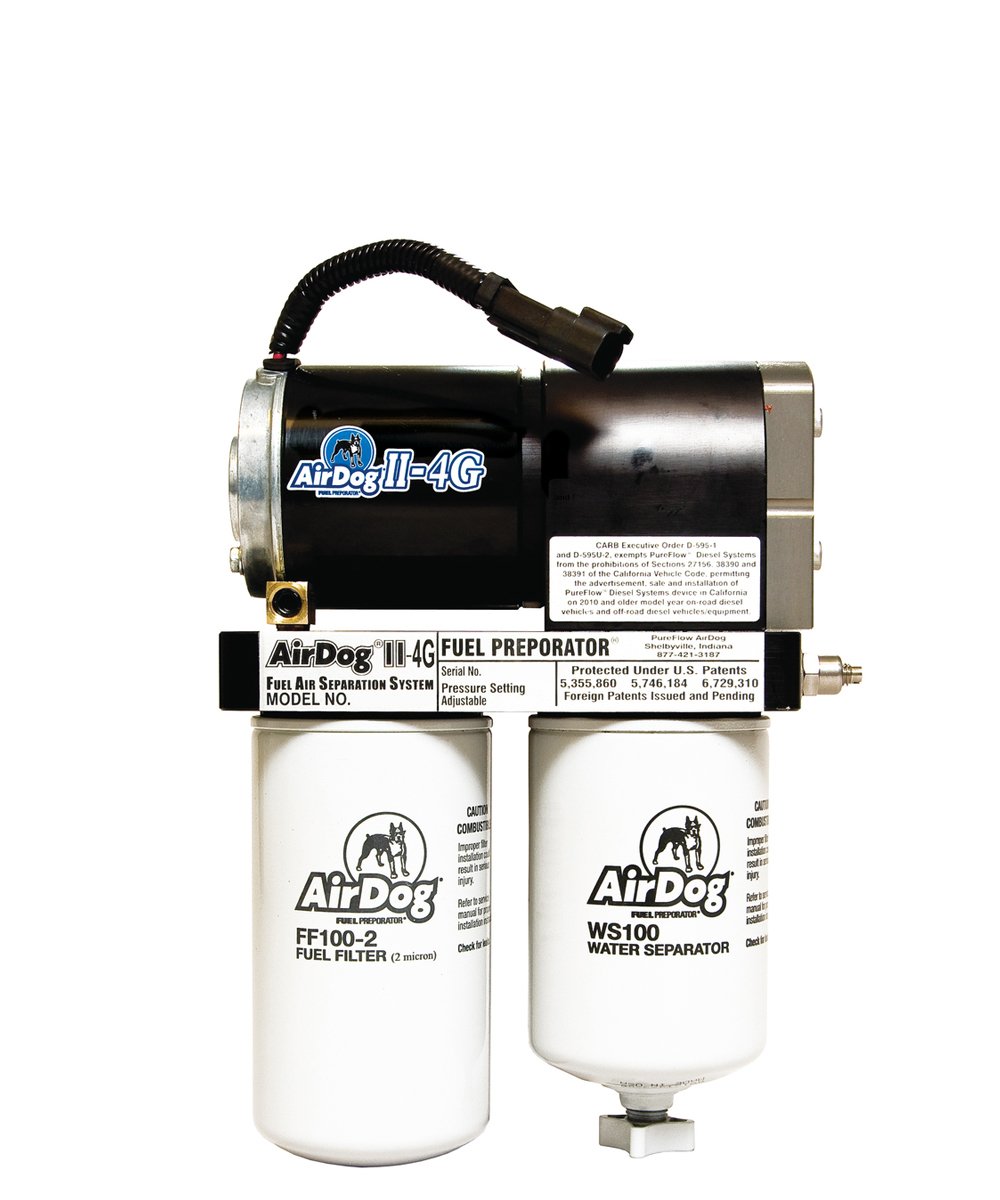

AirDog II-4G Fuel/Air Separation System Featuring Demand Flow Technology & Enhanced Features
The AirDog II-4G is an improvement on the older AirDog II Fuel System technology, accomplishing everything its predecessor did with the addition of a quieter, more efficient, and more reliable motor to give your truck on edge on the street and on the strip. AirDog II-4G also overcomes loss of power for diesel engines operating at higher altitudes
The AirDog II Fuel Air Separation System works by removing various contaminates, including entrained air/vapor, particulates & moisture, & removes excess fuel not needed by engines, allowing the fuel to flow through the regulator and return to the fuel tank. The separated air/vapor enters the return port after the regulator, allowing pure fuel to flow to the engine at a regulated positive pressure. A gerotor pump offers quiet, long lasting performance for your application. AirDog II-4G features Demand Flow Technology & an Adjustable Regulator that lets you fine tune your fuel system for even further increased fuel economy, power, and performance. Get the most our of your diesel truck and ahead of the competition by installing an AirDog II-4G Fuel/Air Separation System on your truck.
- Small & Compact
- Dual Feed Gerotor Pump
- Low Amperage Motor for Efficiency and Endurance
- Self-aligning Motor for Less Maintenance & Less Noise
- Intermediate Pump Shaft to Separate the Motor from Fuel
- Quick Connect Components
- Preset @10-13 PSI
- Flow Rate of 165 GPH
- Mounts to Frame
- Maintains Correct Injection Timing
- Eliminates Spray Pattern Disruption
- Allows for a Full Power Stroke & Complete Burn
- Removes Air & Vapor from Diesel Fuel
- Pure Diesel Fuel Reaching Engine
- High Flow Rates of Fuel to Engine
- Longer Injector Life
- Increased Injection Pump Life
- Increased Fuel Economy
- Optimized Engine Performance
- Increased Torque Output
- Improves Throttle Response
- Reduced Exhaust Emissions
- AirDog II-4G Pump
- Relay Control Wiring Harness
- Fuel Module Up-Grade (when required)
- All Fuel Fittings Required
- Mounting Hardware
- 1/2″ Fuel Lines W/ OEM Style Quick Connect Fittings
- AirDog II-4G Bracket & Spacer
- Plastic Ties
- Installation Manual
HOW IT WORKS:
AirDog® II-4G is designed to operate at flows and pressures beyond the maximum requirements of the engine. It receives fuel under vacuum from the fuel tank containing entrained air/vapor, particulate contaminates and unknown quantities of water.
The fuel passes through the water separator which removes the large particulate contaminates that could damage or jam the gear rotor fuel pump. The fuel, with only entrained air/vapor and tiny particulate contaminates remaining enters the fuel pump.
The fuel, now under positive pressure flow, enters the fuel filter. As the fuel passes through the filter media and the remaining particulate contaminates are caught and contained, the entrained air/vapor is also separated. Through the positive fuel air separation features of the patented AirDog® II-4G the separated air/vapor is discharged from the filter and back to the fuel tank through the Primary Air/Vapor Discharge Port.
The fuel passing through the filter media is now free of contaminates and power robbing air/vapor. At pressures and flows able to meet the needs of the engine, it exits the fuel filter through two passageways. First, the fuel for the engine passes into the fuel pickup tube and on to the engine. Then, the excess fuel not needed by the engine recycles internally through the pressure regulator back to the water separator.
| Weight | 27 lbs |
|---|---|
| Dimensions | 19 × 13 × 7 in |
