Mahle Heavy Duty Overhaul Kit for 2003-2004.5 Cummins/Dodge Ram 5.9L (ETC)

From $1,487.57

Fits: 03-04 (5.9L) Dodge Cummins

  • There was an error loading the PayPal SDK. Please provide the following details to your plugin developer.PayPal config: {"displayName":"Power Driven Diesel","clientId":"ASSWrJlEzvPq1RzEROjgjNbg9bcR0dUpiH6EM99rQ1NS12mOQhWaF64MwkXedzPQH6m3nMuCWlLgESRo","assetsUrl":"https://checkout.paypal.com","environment":"live","environmentNoNetwork":false,"unvettedMerchant":false,"braintreeClientId":"ARKrYRDh3AGXDzW7sO_3bSkq-U1C7HG_uWNC-z57LjYSDNUOSaOtIa9q6VpW","billingAgreementsEnabled":true,"merchantAccountId":"powerdrivendiesel_instant","payeeEmail":null,"currencyIsoCode":"USD"}PayPal SDK query: https://www.paypal.com/sdk/js?components=buttons,messages¤cy=USD&enable-funding=paylater&vault=false&client-id=ASSWrJlEzvPq1RzEROjgjNbg9bcR0dUpiH6EM99rQ1NS12mOQhWaF64MwkXedzPQH6m3nMuCWlLgESRo&intent=capture

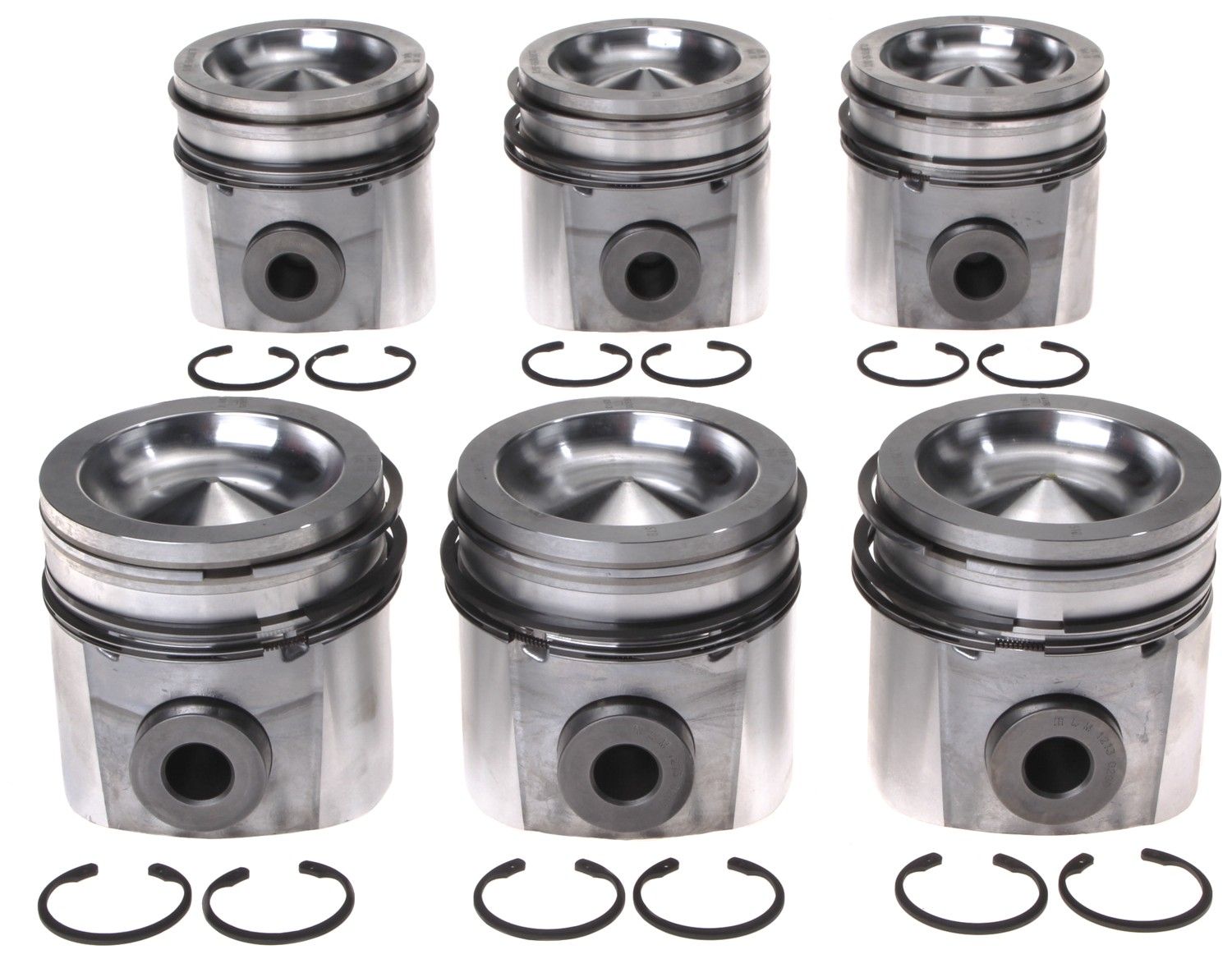

MAHLE Piston Set for 2003-2007 5.9l 3rd Gen Cummins

$678.91
2003-2007 Dodge Cummins 5.9L ISB (24-Valve) Model: 2500/3500 Piston Ring Are not included
Clear

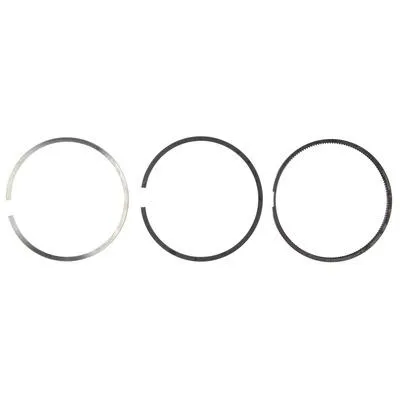

S42221 Piston Ring Set

6 x MAHLE S42221 Premium Piston Rings Set Fits Cummins 5.9 1989-2004

$35.50
Features: Single set of S42221 (.020 , .040) Piston Rings Six Required for Full Piston Ring Replacement

6 x Clevite Connecting Rod Bearings for 2003-2018 Dodge 5.9L/6.7L Cummins CB-1873AP

$16.49
Fits Cummins Diesel 2003-2013 5.9L/6.7L Fractured Rod Standard Size A Series - Aluminum Material

Clevite MS-2328P P-Series Main Bearing Set 89-18 Cummins 5.9/6.7

$72.86

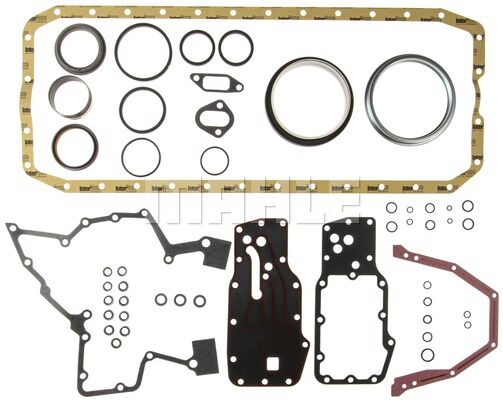

Mahle CS54556 03-09 5.9L Cummins Lower Engine Gasket Set

$164.93
Water Pump Gasket Included Yes
Package Quantity 28
Item Grade OEM Standard
Water Outlet Gasket Included Yes
Oil Pan Gasket Material Paper
Timing Cover Gaskets/Seal Included Yes
Rear Main Seal Material Fluroelastomer
Rear Main Seal Included Yes
Oil Pan Gasket Included Yes
Head Fasteners Included No
Fuel Pump Gasket Included No
Cylinder Head Gasket Included No
Note: These items may come in a Victor Reinz box, as Mahle has acquired Victor Reinz. Please Call For Availability

In stock (can be backordered)

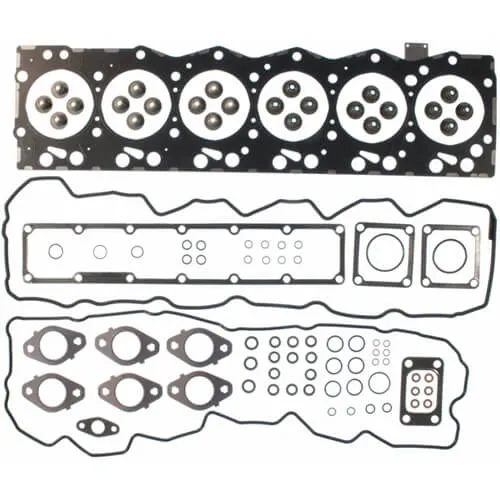

Mahle 03-07 Dodge 5.9L Cummins Gasket/Upper Cylinder Set 1.28mm - HS54557

$247.64
BACKORDER This is a complete upper cylinder head gasket set with "thick" head gasket, for the '03-'07 5.9L Common Rail Engines. Contents:
  • Air Crossover (2)
  • Cylinder Head (1)
  • Exhaust Manifold (6)
  • Fuel Injection O-Ring (6)
  • Fuel Line O-Ring (11)
  • Injector Nozzle Washer (6)
  • Intake Manifold (1)
  • O-Ring (6)
  • O-Ring (1)
  • O-Ring (1)
  • O-Ring (2)
  • O-Ring (1)
  • O-Ring (6)
  • O-Ring (1)
  • O-Ring (6)
  • O-Ring (1)
  • O-Ring (2)
  • Rocker Cover (1)
  • Thermostat Seal (1)
  • Turbo Oil Drain (1)
  • Turbocharger (1)
  • Valve Cover (1)
  • Valve Stem Seals (12)
  • Valve Stem Seals (12)
  • Washer (3)
  • Valve Cover Grommet (6)

In stock (can be backordered)

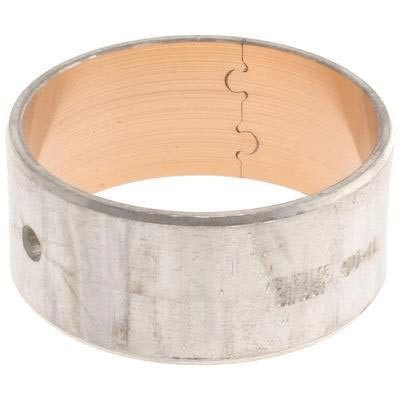

Mahle Clevite Camshaft Bearing for 1998.5-2017 Cummins -SH-1981

$11.29
Supply your 1999-2007 Dodge 5.9L Cummins with OE replacement bearings when you add the Mahle Clevite SH-1981 Camshaft Bearing. Made to OEM quality, the Camshaft Bearing maintains factory performance.


Serial Number

Please enter some text in this field.
Please enter some text in this field.
Please enter some text in this field.
SKU: 50000000020 Category: Brand:

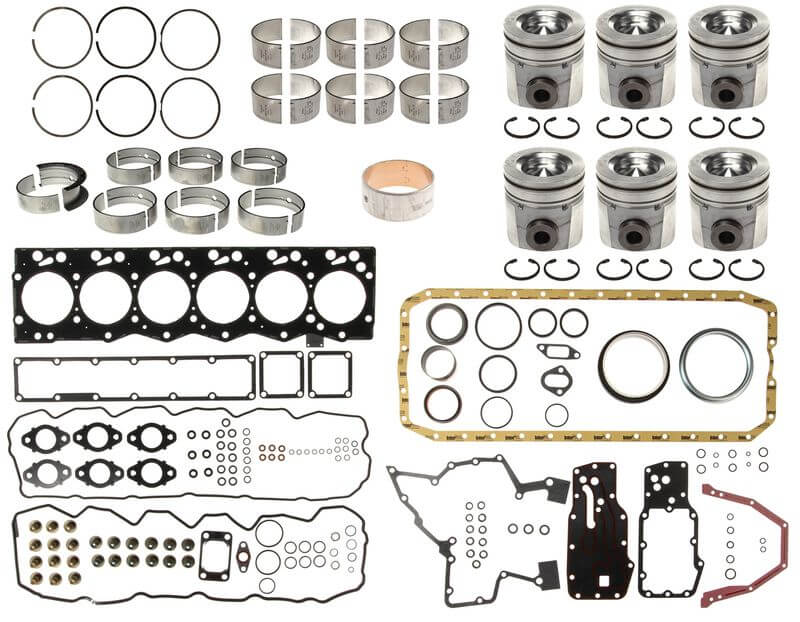

Mahle has done all the work for you, rather than trying to source all of the necessary parts for an engine rebuild, this comprehensive Heavy Duty Overhaul kit for your 5.9L Cummins includes everything you need to rebuild or upgrade your engine. Mahle has already done all of the necessary research and development to bring you the best parts for your application. Every part in this kit has been been specifically chosen to help your motor last longer, run better, and give you peace of mind that nothing but the best quality parts are in your truck.

Includes:

  • High-Output Pistons (6)
    – Please specify desired bore size
  • Ring Set (6)
    – Ceramic chrome top ring
  • Connecting Rod Bearings
    – Over/Undersize bearings available upon request
  • Main Bearing Set
    – Over/Undersize bearings available upon request
  • Camshaft Bearing
  • Top End Gasket Set
    – Includes cylinder head gasket, exhaust manifold gasket, intake manifold gasket, etc.
  • Bottom End Gaskets & Seals
    – Includes water pump gasket, oil pan gasket, timing cover gaskets/seals, rear main seal, etc.
Note: This kit is for the High-Output model trucks (VIN code “C”)

We must know the serial number or CTL tag of the engine you wish to purchase this kit for!


There were many different piston part numbers in the Cummins engines and we need to know exactly which pistons you need in order to get the right kit from Mahle


Engine serial number is 8 digits and can be found on the timing cover


If you DO NOT provide us with the engine serial number, CTL tag, or # on the top of the piston(s), we will order a generic kit for your engine and there will be no guarantee of fitment
