SKU: 13125-OFEK
475hp 1000 TQ 13″ Organic-Feramic Disc Clutch
This 13125-OFEK South Bend Clutch Converts stock 12 1/4″ to 13-1.25″ clutch. Complete Clutch Replacement Kit, comes with everything you need to do the job, including Flywheel, Throw Out Bearing, Stock Needle Pilot Bearing, and alignment tool. *88-93 Getrag trans must re-use stock crank bolts*
This kit features a variation from organic to organic and fmarcelled fins. The pressure plate is modified for higher plate load and smoothness of engagement. This clutch was designed to cure premature disk failure due to high horse power and heavy hauling in the 5 speed and early 6 speed non-ETH 12 1/4″ clutches.
Taking the 13″ ETH clutch and modifying it to accept the 1 1/4″ input shaft. By doing this, it enabled you to offer a disk center that is 2-3 times larger and stronger than can be provided in the 12 1/4″ clutch kits.

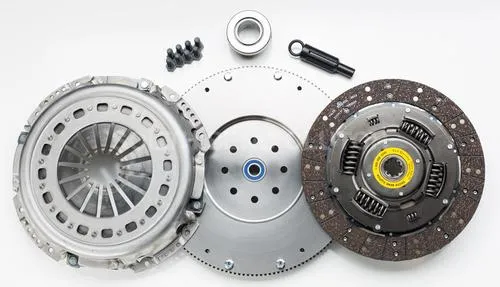

Kit comes with a flywheel, re-drilled and refaced to accept the larger clutch and is rated to handle up to 475 horsepower & 1000 ft. lbs. of torque. Years 1988-2004 5 speed & 6 speed non-ETH.
Fits:
89-93 (Getrag)
94-04 (NV4500)
99-00.5 (NV5600)
Compatible With: (For Stock Input Shaft)
- 1989 Dodge 5.9L 12V Cummins
- 1990 Dodge 5.9L 12V Cummins
- 1991 Dodge 5.9L 12V Cummins
- 1992 Dodge 5.9L 12V Cummins
- 1993 Dodge 5.9L 12V Cummins
- 1994 Dodge 5.9L 12V Cummins
- 1995 Dodge 5.9L 12V Cummins
- 1996 Dodge 5.9L 12V Cummins
- 1997 Dodge 5.9L 12V Cummins
- 1998 Dodge 5.9L 12V Cummins
- 1998.5 Dodge 5.9L 24V Cummins
- 1999 Dodge 5.9L 24V Cummins
- 2000 Dodge 5.9L 24V Cummins
- 2001 Dodge 5.9L 24V Cummins
- 2002 Dodge 5.9L 24V Cummins
- 2003 Dodge 5.9L 24V Cummins
- 2004 Dodge 5.9L 24V Cummins
- 2004.5 Dodge 5.9L 24V Cummins
- 2005 Dodge 5.9L 24V Cummins
*May not work for all builds due to other engine/vehicle modifications
Frequently bought with:
Dodge \ Ram Diesel
Power Driven 10 AN Block Oil Drain Fitting 89-07 Dodge Cummins
| Weight | 115 lbs |
|---|---|
| Dimensions | 21 × 18 × 9 in |
