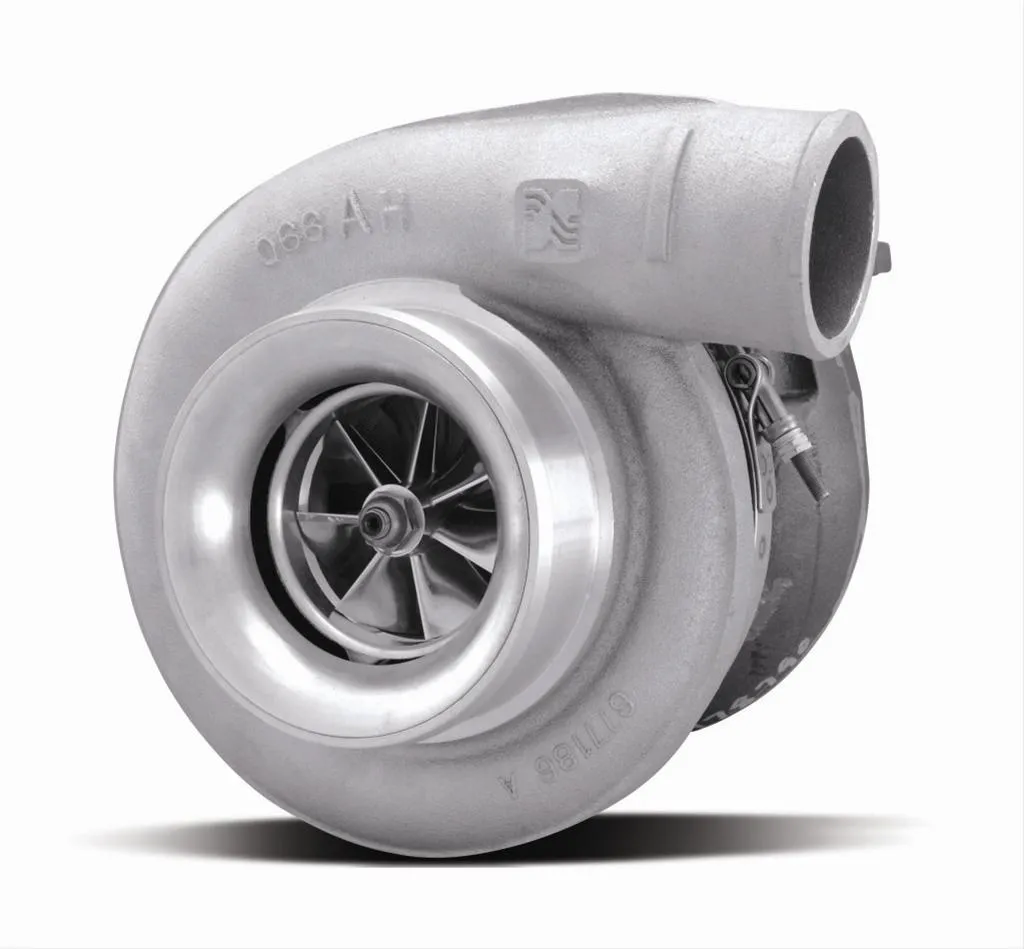

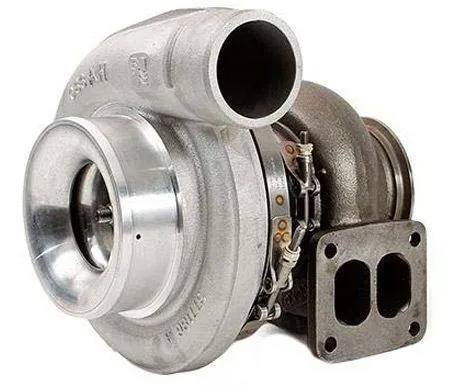

Borg Warner Turbos S480 FMW Turbocharger (1000+HP)

The Borg Warner S480 FMW turbo is commonly used as the atmosphere (big/top turbo) in compound turbo set-ups (although it can be used as a single), this Borg Warner S480 turbo flows over 125lbs/min. That’s enough flow for a more than 1,000 HP! The Borg Warner s480 turbo is a popular for compound turbo set-ups where it is used in conjunction with the stock turbo or an aftermarket one. Whether you want to finish the quarter mile in record time, make a full pull with a sled, or dominate the dyno, this turbo will help get you there.

Borg Warner S480 Features:

• *1,000 HP Capable
• Twin hydrodynamic journal bearings
• Extended tip technology compressor wheel
• Twin scroll turbine housing
• Adjustable compressor and turbine housing orientation
• Compressor cover re-circulation grooves
• Standard turbine inlet and outlet connections
• 80mm comp. Wheel Inducer Diameter
• 87mm?Turbine Wheel Outer Diameter
• 1.25 A/R T4 turbine housing

Check out our Turbo Accessories to get the most out of your turbo!

*Maximum HP ratings are only attainable with proper supporting modifications
