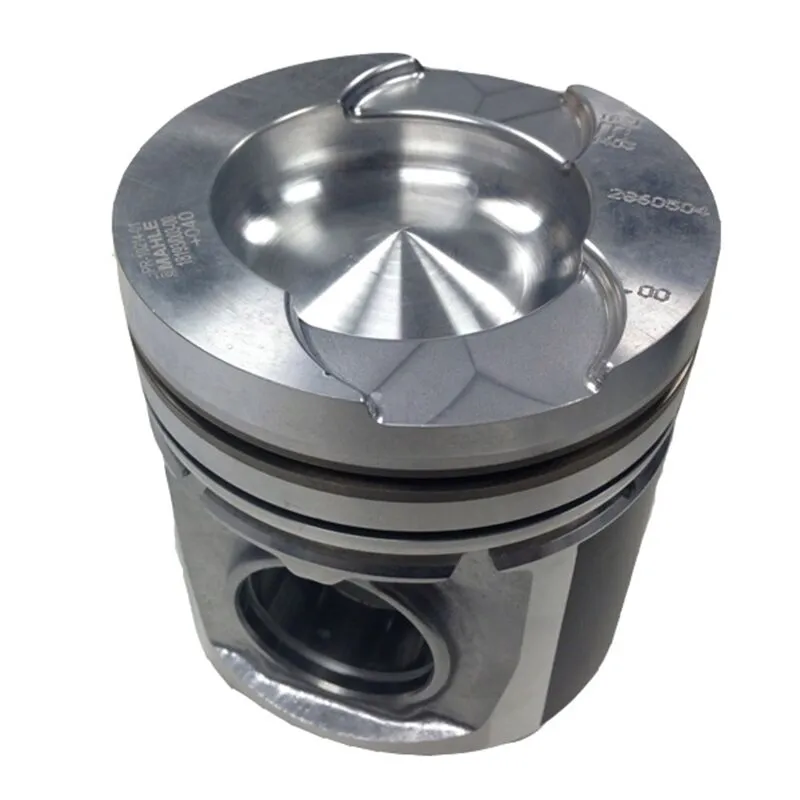

Cast Performance Pistons 12V

Cast Performance Pistons – 12V w/ 0.150″ deep valve pockets

Regular Price $961.33

-

Page Superseded: Please see following page for product Cast Performance Pistons – 12V w/ 0.150″ Deep Valve Pockets

Performance Cast

Designed for street/strip or pulling trucks making 400-1000HP that still get used as a daily driver or work truck. Machined from OE castings (retaining the steel top ring insert), giving the same drivability and longevity of an OE piston with additional strength through industry leading design technology.

  • CUMMINS 5.9L B-Series Cast Performance Pistons –
  • 12V w/ 0.150″ deep valve pockets
  • Early 12V and marine-style bowl
  • Short pin design
  • Coated skirt
  • Ring Set (S42170) Included
Add to Wishlist
SKU: MPP 12V-59L-150-DIS Categories: , , , , Tag:

Page Superseded: Please see following page for product Cast Performance Pistons – 12V w/ 0.150″ Deep Valve Pockets

Performance Cast

Designed for street/strip or pulling trucks making 400-1000HP that still get used as a daily driver or work truck. Machined from OE castings (retaining the steel top ring insert), giving the same drivability and longevity of an OE piston with additional strength through industry leading design technology.

CUMMINS 5.9L B-Series Cast Performance Pistons – 12V w/ 0.150″ deep valve pockets
Bore Stroke Rod Comp Height Pin Diam Crown Vol Weight Grams Compression Ratio Alloy Clearance Guide Assembly Part Number
Meas Min Max
High Compression
4.015 4.724 7.559 2.817 1.575 -54.1cc 1119 14.9 M124 0.5 0.0055 0.0065 197952315
4.035 1138 15.1 197952335
4.055 1158 15.2 197952355
Low Compression
4.015 4.724 7.559 2.817 1.575 -59.2cc 1105 14.0 M124 0.5 0.0055 0.0065 197952115
4.035 1124 14.1 197952135
4.055 1144 14.3 197952155
CUMMINS 5.9L B-Series Cast Performance Pistons – 12V w/ 0.150″ deep valve pockets
Bore Stroke Rod Comp Height Pin Diam Crown Vol Weight Grams Compression Ratio Alloy Clearance Guide Assembly Part Number
Meas Min Max
High Compression
4.015 4.724 7.559 2.817 1.575 -54.1cc 1119 14.9 M124 0.5 0.0055 0.0065 930036415
4.035 1138 15.1 930036435
4.055 1158 15.2 930036455
Low Compression
4.015 4.724 7.559 2.817 1.575 -59.2cc 1105 14.0 M124 0.5 0.0055 0.0065 930036615
4.035 1124 14.1 930036635
4.055 1144 14.3 930036655
Weight 28 lbs
Dimensions 16 × 12 × 12 in
Piston Size

4.015 (Stock), 4.035 (20 Over), 4.055 (40 Over)
Compression

Low Compression, High Compression
