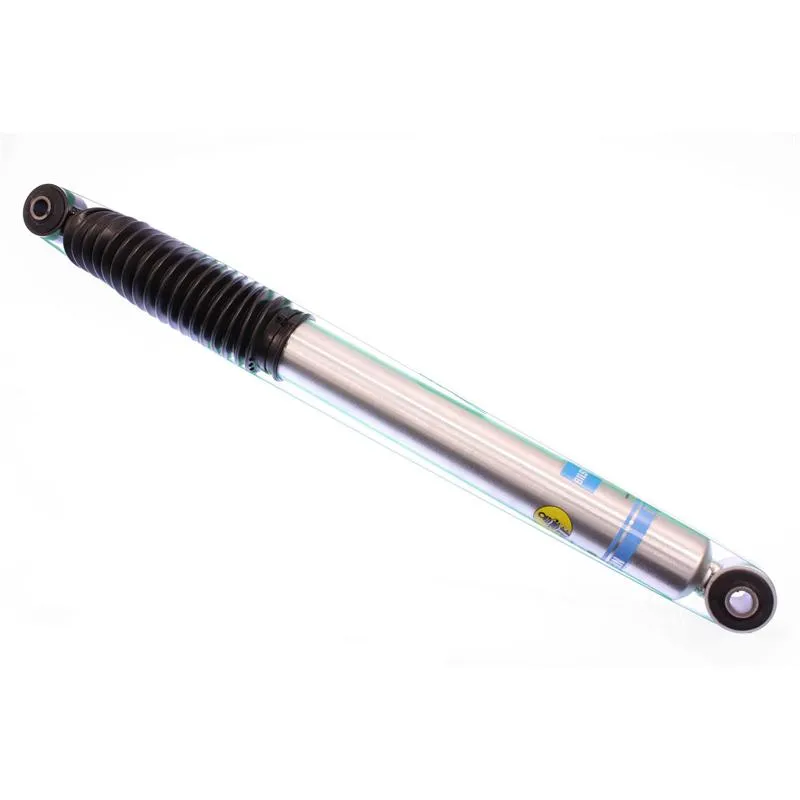

Bilstein 5100 Series Shock Absorber 24-191203 (1994-2012 Dodge Ram 3500 & 1999-2010 GM 2500/3500HD Rear Lifted 0-2″)

The Bilstein 5100 Series Shock Absorber 24-191203 are high gas pressure monotube shocks that are engineered specifically for pickups, SUVs and Jeeps that have been lifted. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Featuring a super damping ability, the 5100 Series Shock Absorber is ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.

Part Number: 24-191203

Old Part Number: F4-BE5-6647-H1

Setting: 5100 Series

Position: Rear

Description: Rear Lifted Height: (0-2″*)

Quantity Needed Per Vehicle: 2 (Sold Individually)

Finish: Zinc plated

Reservoir: No

Body Design: 46mm ID smooth body (Non-coilover)

Collapsed Length (IN): 16.95

Extended Length (IN): 27.36

Collapsed Length (MM): 430.5

Extended Length (MM): 695

Applications:

Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.
