BD Diesel (1062124-4) 99-03 Ford 4R100 4wd Stage 4 Performance Transmission Kit

The BD-Power 1062124-4 Stage 4 Transmission Build-It Kit for your 1999-2003 Ford 7.3L Powerstroke is the perfect option for those looking to rebuild their transmission. These kits feature the same parts used by BD-Power in their own performance transmissions and come with the components needed for the seasoned builder to complete the job. The Stage 4 kit is a Master Rebuild Kit that is designed for use in high performance applications or where durability is needed.

• Stage 4 Heavy Duty Rebuild Kit
• For Durability & High Performance Use
• For Use On 4WD Models Only

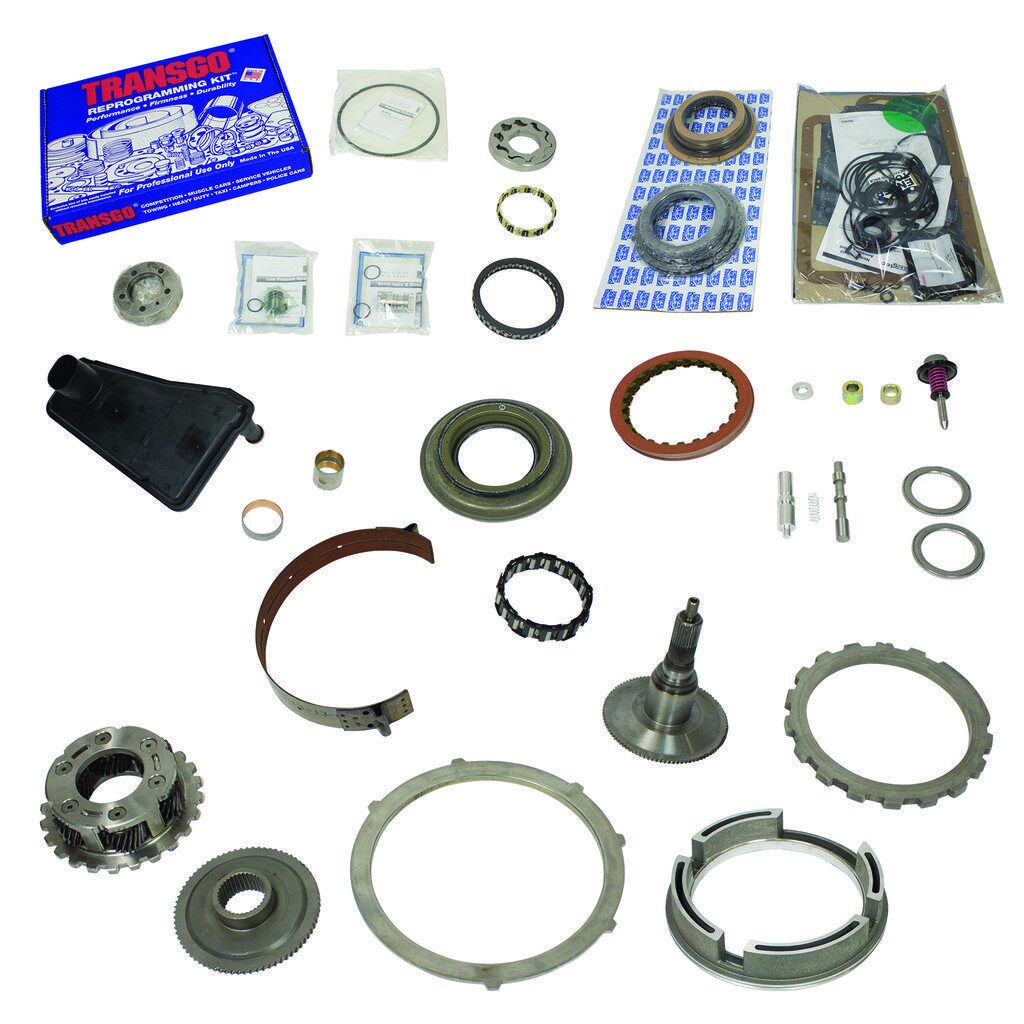

(2) Bearing

(1) Bearing Bronze

(1) Boost Valve

(1) Boost Valve & Sleeve Kit

(1) Bushing – 1-Pc Case

(1) Bypass Tube Eliminator – Front

(1) Bypass Tube Eliminator – Rear

(1) Center Support – Machined

(1) Clutch – O/D Roller(Steel)

(1) Clutch – Overrun Roller

(1) Coast Clutch Piston

(2) Coast Clutch Frictions/Steels

(5) Direct Frictions/Steels

(1) Filter

(5/4) Forward Frictions/Steels

(7) Friction – Rev/Low – 24 Teeth

(1) Gear Pump

(1) Inner Race

(1) Intermediate Band

(1) Intermediate Band Servo Piston

(4) Intermediate Frictions/Steels

(1) Intermediate Piston – Machined

(1) Intermediate Sprag

(1) Lockup Kit – On/Off

(2) Low Reverse Frictions/Steels

(1) Output Shaft

(4) Overdrive Frictions/Steels

(1) Overhaul Kit

(1) Pressure Plate – Low/Rev Machined

(1) Rear Planet

(1) Rear Ring Gear Hub – Machined

(1) Shift Kit – Tugger

(1) Snap Ring – Sure Lock

(1) Steel – Machined

(2) Washer – 1.0 x 0.530 x 0.063 5052 Alum

(2) Washer – 1.0 x 0.665 x 0.063 5052 Alum

Note: Transmission Build-It Kits are not covered by any warranty. Components are guaranteed to be free of defects upon receiving the products. However, the build and function of the transmission is the sole responsibility of the builder/installer.
