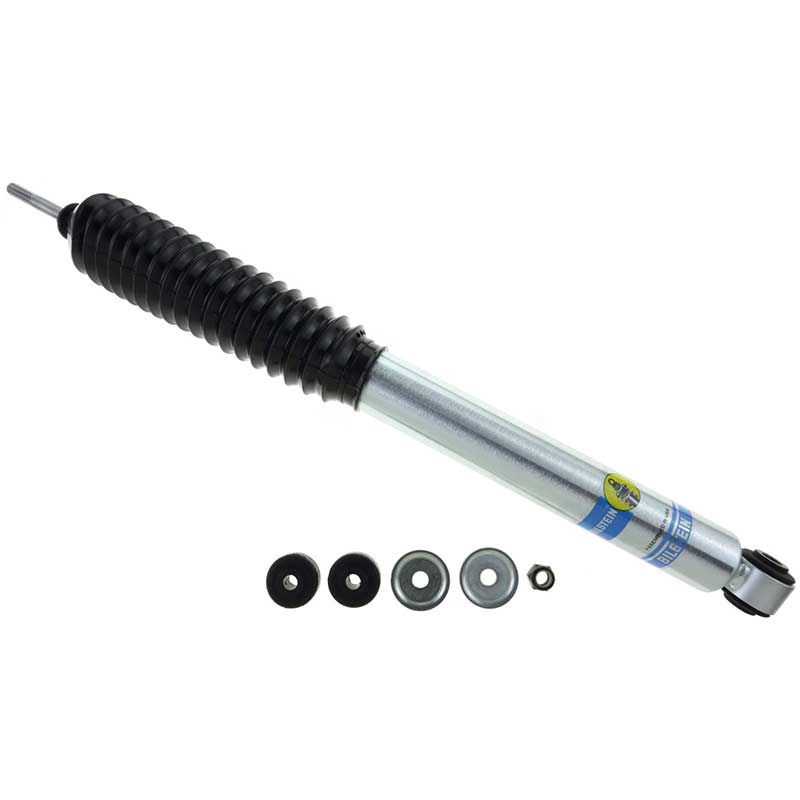

Bilstein 5100 Series Shock Absorber 24-185776 (1994-2012 Dodge Ram 3500 (Front) Lifted 0″-2.5″ 4wd | 2005-2016 Ford Super Duty 4WD (Front) Lifted 4″

The Bilstein 24-185776 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.

• Part Number: 24-185776
• Old Part Number: F4-BE5-6681-H8
• Setting: 5100 Series
• Drive Type: 4WD
• Position: Front
• Quantity Needed Per Vehicle: 2 (Sold Individually)
• Description: Front Lifted Height: (0″-2.5″ Dodge) (4″ Lift Super Duty)**
• Finish: Zinc plated
• Reservoir: No
• Body Design: 46mm ID smooth body (Non-coilover)

Measurements:

• Collapsed Length (IN): 14.88
• Extended Length (IN): 24.37
• Collapsed Length (MM): 378
• Extended Length (MM): 619

2005-2016 Ford Super Duty F-250/350 4WD – Front (Lifted 4″)

Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
